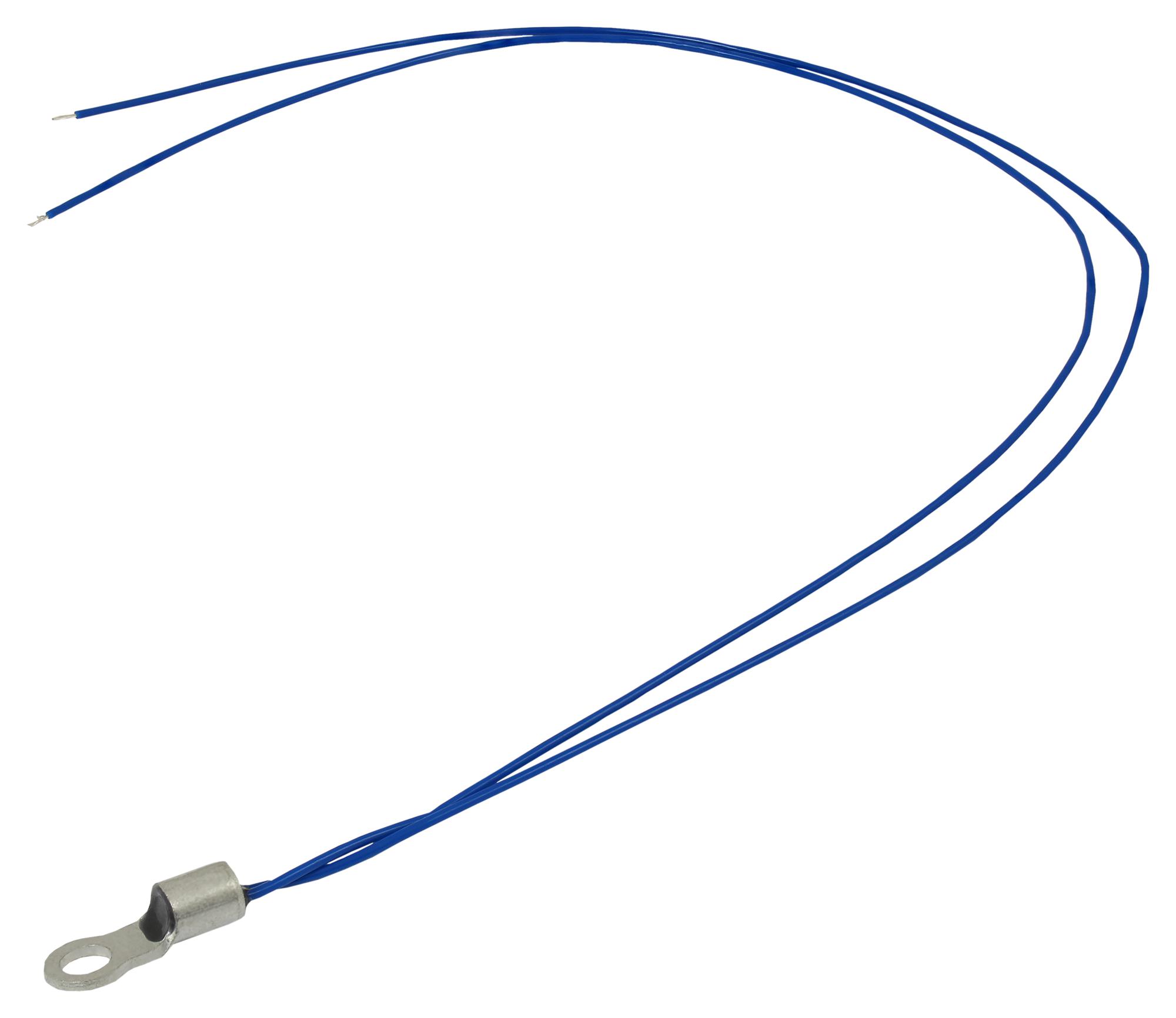

Vishay NTCALUG01T103G400 Lug Thermistor
The NTCALUGO1T thermistor is a rugged, high-stability lug sensor rated for 150 °C, suitable for automotive, EV, and battery management applications. It features ETFE-insulated cable, long-term stability over 5000 hours in dry heat, and UL recognition. Easily mounted via M3 or M3.5 screws, it offers excellent thermal contact and electrical insulation. With wire leads that can be soldered or crimped, this device is ideal for surface sensing in heat management, consumer appliances, and power electronics, ensuring reliable performance in demanding environments.
Vishay NTCALUG01T103G400 Lug Thermistor Specifications:
- Resistance at 25°C: 10KΩ
- Tolerance on Resistance: ±1-2%
- Tolerance on B-value: ±0.5-1%
- Maximum Operating Temperature: 150°C
- Dielectric Withstanding Voltage: 2700 Vac between terminals and lug
- Insulation Resistance: 100 MΩ at 500 VDC
- Cable Insulation: ETFE, rated for 600 V
- Cable Test Voltage: 3.4 kV
- Material: Epoxy coating and tin-plated copper leads
- Mounting: M3 or M3.5 screw, on metal surface or PCB
- Lead Wire: Solderable or crimpable
- Weight: approximately 3.2 g
Buy the Vishay Series NTCALUGO1T Temperature Sensor: NTCALUG01T103G400
Order the Vishay NTCALUGO1T103G400 lug thermistor online today to benefit from its high stability at 150°C, UL recognition, and robust design. Ideal for automotive and electronic applications, it features ETFE insulation, easy mounting with M3 screws, and solder or crimp leads for versatile installation. Ensure your power electronics and battery management systems operate accurately in demanding environments with this dependable, long-lasting temperature sensor delivered directly to your door. Purchase now for quick, reliable performance.
Buy Vishay NTCALUGO1T103G400 high-stability lug thermistor now and experience reliable temperature sensing with easy mounting and long-term stability.
Frequently Asked Questions
Where can I buy Vishay NTCALUG01T103G400?
You can click on the BUY or RFQ button to purchase NTCALUG01T103G400 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG01T103G400?
You can download the NTCALUG01T103G400 datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG01T103G400?
Vishay
