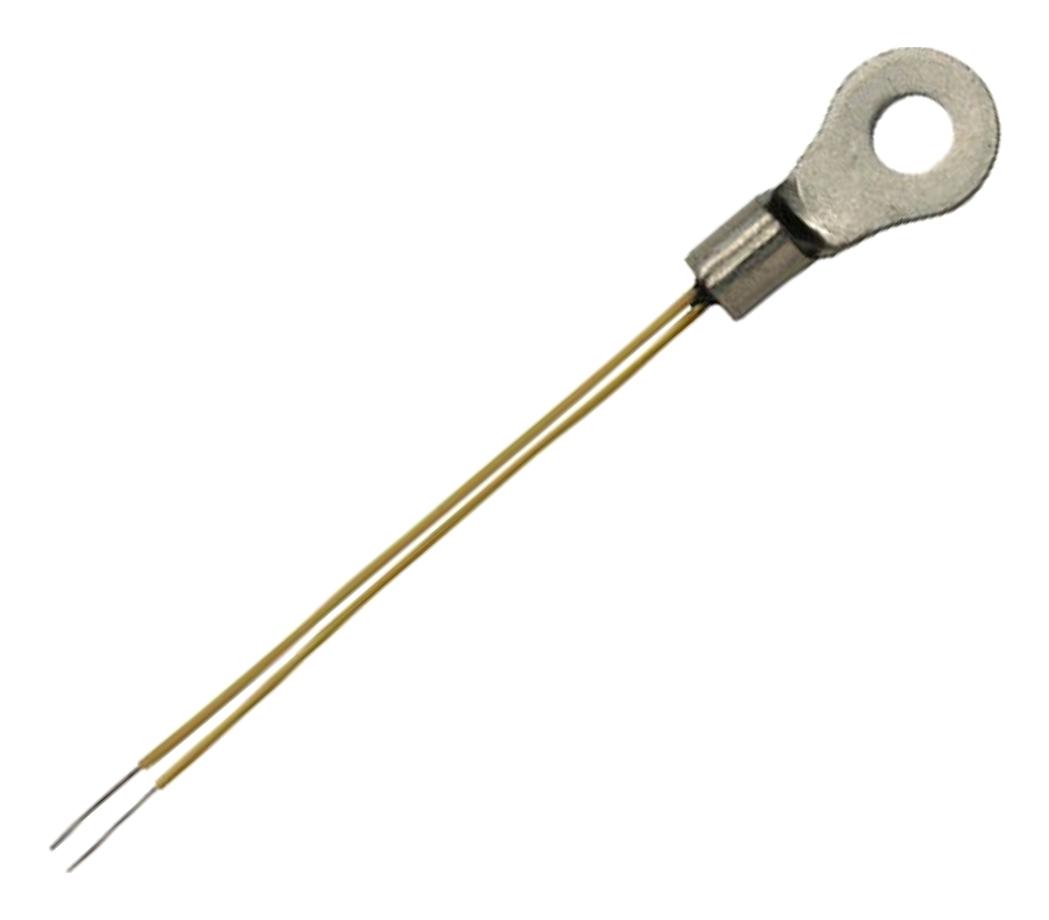

Vishay NTCALUG02A472GA NTC Thermistor Lug Sensor
Vishay NTC thermistor lug sensor with epoxy coating and buffer layer, mounted in a tin-plated copper ring lug with PEEK insulated leads. Designed for accurate surface temperature sensing and control in electronics, industrial, automotive, and consumer applications. Features low thermal gradient, mounting via screw on metal surfaces, solder or connector options, UL recognition, and RoHS compliance. Suitable for precise temperature measurement in heat sinks, power electronics, and equipment requiring reliable thermal response and robust mounting options.
Vishay NTCALUG02A472GA NTC Thermistor Lug Sensor Specifications:
- Resistance values: 4.7K to 100K at 25°C
- Tolerance: ±1% or ±2%
- Temperature range: -55°C to +125°C
- Resistance at 25°C: from 4.7K to 100K ohms
- Thermal time constant: approximately 5 seconds
- Dissipation factor: 10 mW/k
- Thermal gradient: <0.05 KK
- Dielectric withstand voltage: 1800 Vac
- Weight: 1.0 g
- Mounting: screw mounting with options for M8, M3.5, M4, or American Stud #8
- Material: epoxy coating, tin-plated copper ring lug, PEEK insulated leads
- Lead wire: AWG#30 (0.25 mm), silver-plated nickel
- Compliance: UL Recognized, RoHS compliant, cULus recognized, AEC-Q200 qualified
- Operating environment: suitable for surface mounting, not in permanent contact with water or liquids
Buy the Vishay Series NTC Thermistors: NTCALUGO2A472GA
Order Vishay NTCALUGO2A472GA online today to ensure your projects benefit from precision temperature sensing. These thermistor lug sensors are perfect for accurate surface temperature control in electronics, automotive, and industrial equipment. Featuring UL recognition, RoHS compliance, and robust screw mounting options, they deliver reliable thermal monitoring for heat sinks, power electronics, and control systems. Purchase now to optimize your temperature management with high-quality, easy-to-install thermistors designed for demanding environments and long-lasting performance.
Buy Vishay NTCALUGO2A472GA now and experience unmatched reliability and performance in surface temperature sensing and industrial control applications.
Frequently Asked Questions
Where can I buy Vishay NTCALUG02A472GA?
You can click on the BUY or RFQ button to purchase NTCALUG02A472GA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG02A472GA?
You can download the NTCALUG02A472GA datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG02A472GA?
Vishay
