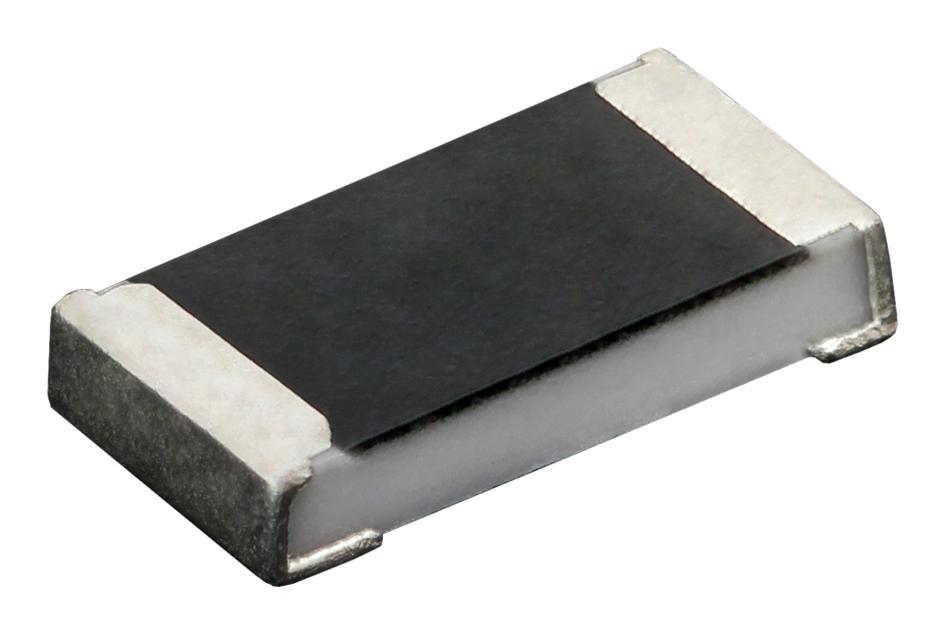

Vishay RCS080547R0JNEA Anti-Surge Resistor
The RCS e3 series consists of anti-surge, high power thick film chip resistors designed for automotive, industrial, and telecommunication applications. Constructed on high-grade ceramic substrates with laser-trimmed resistive layers, they offer excellent surge pulse capabilities and thermal stability. These resistors are RoHS compliant, suitable for automated assembly, and feature robust protective coatings with pure tin plating for lead-free soldering. They operate within -55°C to +155°C, provide rated dissipation up to 0.5W, and withstand high voltages, ensuring reliable performance in demanding electronic environments.
Vishay RCS080547R0JNEA Anti-Surge Resistor Specifications:
- Size: RCS0402, RCS0603, RCS0805, RCS1206
- Resistance Range: 1.9 to 10 MΩ, up to 10 MΩ for some models
- Resistance Tolerance: ±5%, ±1%, ±0.5%
- Temperature Coefficient: ±200 ppm/K or ±100 ppm/K depending on model
- Rated Dissipation: 0.2W to 0.5W
- Operating Voltage: 50V to 200V
- Maximum Film Temperature: 155°C
- Operating Temperature Range: -55°C to +155°C
- Dimensions: Length from 1.0mm to 3.2mm; Width from 0.5mm to 1.6mm
- Mounting: Suitable for wave, reflow, vapor phase soldering
- Composition: Ceramic substrate with cermet film, protective coating, tin-plated termination
- Compliance: RoHS, AEC-Q200 qualified
- Test Standards: EN 60115-1, EN 140401-802, IEC 60068 series
Buy the Vishay Series RCS Anti-Surge Resistor RCS080547R0JNEA
Experience the dependable quality of Vishay RCS e3 high power thick film resistors available online. Designed for demanding automotive, industrial, and telecommunication applications, these resistors offer excellent surge pulse capability, high voltage tolerance, and thermal stability. Manufactured with precision on high-grade ceramic substrates, they feature RoHS compliance, pure tin plating for lead-free soldering, and a rugged protective coating. Purchase now to get reliable performance, ease of automatic assembly, and long-term stability in your electronic projects.
Order your Vishay Series RCS0805 100 ohm resistor today and ensure your designs benefit from high surge resilience and reliable performance.
Frequently Asked Questions
Where can I buy Vishay RCS080547R0JNEA?
You can click on the BUY or RFQ button to purchase RCS080547R0JNEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCS080547R0JNEA?
You can download the RCS080547R0JNEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCS080547R0JNEA?
Vishay
