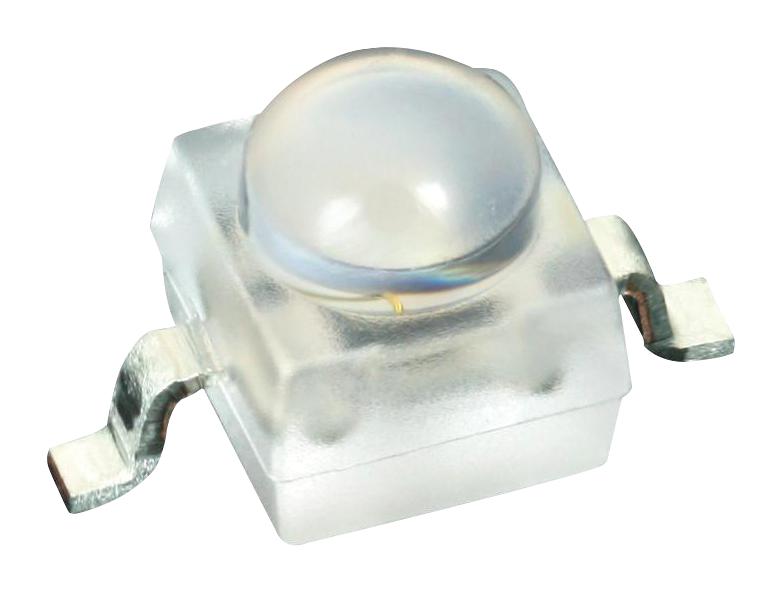

Vishay VLDS1235G08 Dome Lens LED
The VLDS1235G08 is a high-brightness surface-mount dome lens LED designed for versatile applications including traffic signals, signage, interior, and exterior lighting. Utilizing advanced AllnGaP technology, this LED offers high luminous flux and intensity, coupled with a compact 2.3 x 2.3 x 2.8 mm package with gullwing or reverse gullwing options. It supports reflow soldering, has an angular beam of +11°, and withstands up to 70 mA forward current, making it ideal for indicator, backlighting, and signaling in various electronic and lighting systems.
Vishay VLDS1235G08 Dome Lens LED Specifications:
- Package type: SMD dome lens with gullwing or reverse gullwing
- Dimensions: 2.3 x 2.3 x 2.8 mm
- Luminous flux: up to 24,400 med
- Luminous intensity: up to 35,500 med
- Angular beam: + 11°
- Forward voltage: 1.9 V to 2.7 V at 50 mA
- Reverse voltage: 5 V (short term application only)
- Maximum DC forward current: 70 mA
- Junction temperature: 125°C
- Operating temperature range: -40°C to +100°C
- Storage temperature: -40°C to +100°C
- Power dissipation: 200 mW
- ESD withstood voltage: up to 2 kV
- Material: AllnGaP / Si chip technology
- Suitable for reflow soldering according to J-STD-020
- RoHS compliant, halogen-free
Buy the Vishay Series Power Dome Lens LED: VLDS1235G08
Purchase the Vishay Series Power Dome Lens LED VLDS1235G08 today for high-brightness illumination in signage, traffic signals, and indicator applications. Featuring advanced AllnGaP technology for superior luminous flux, this surface-mount LED comes in a compact 2.3 x 2.3 mm package, with gullwing or reverse gullwing options. Supports reflow soldering, operates at up to 70 mA, and withstands harsh environments, making it ideal for interior and exterior lighting, backlighting, and control systems that demand reliable, vibrant illumination.
Order your Vishay Series Power Dome Lens LED VLDS1235G08 today and enhance your lighting projects with reliable, high-brightness performance.
Frequently Asked Questions
Where can I buy Vishay VLDS1235G08?
You can click on the BUY or RFQ button to purchase VLDS1235G08 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLDS1235G08?
You can download the VLDS1235G08 datasheet or visit the Vishay website for support.
Who is the manufacturer of VLDS1235G08?
Vishay
