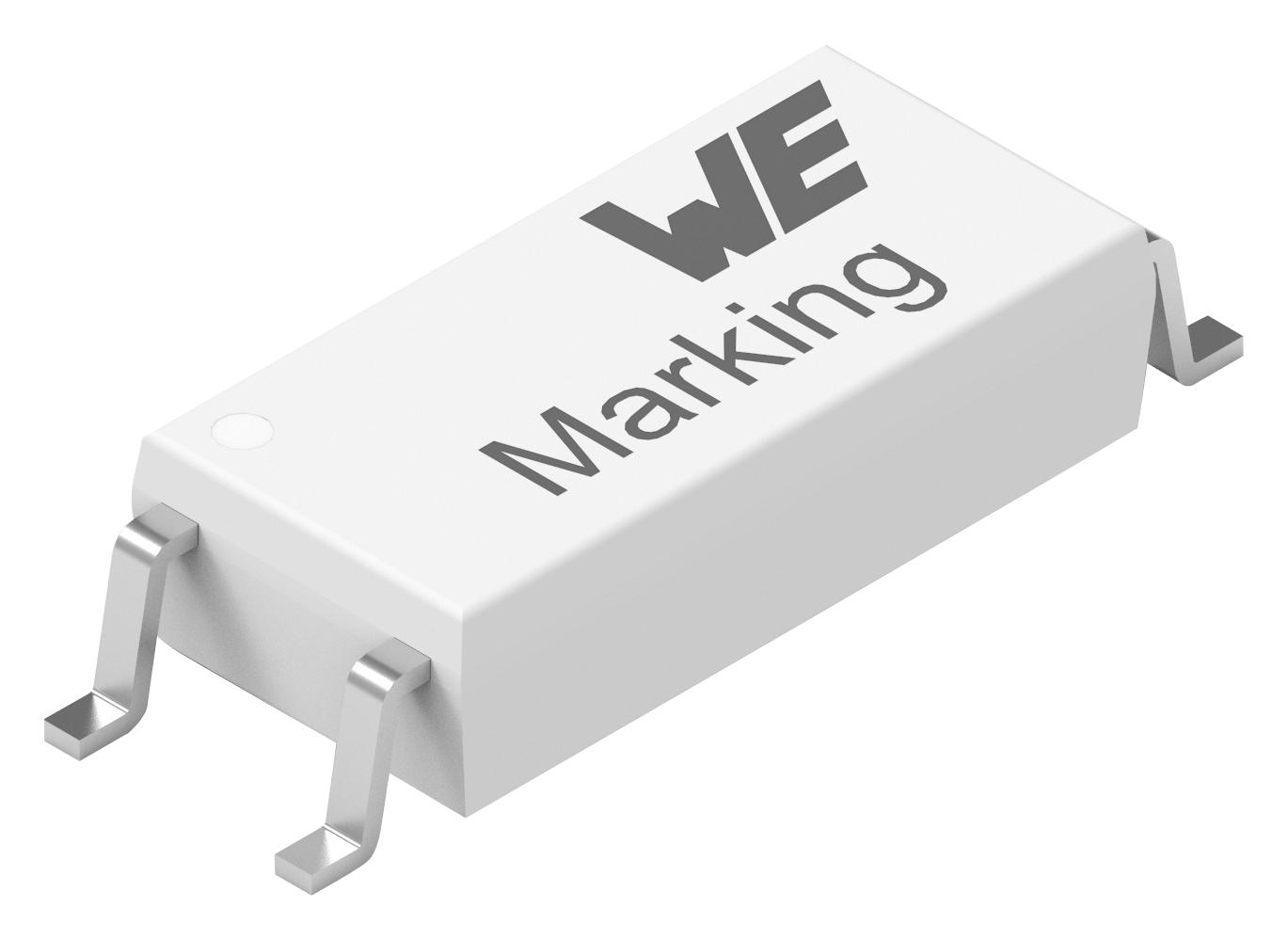

WURTH ELEKTRONIK 140109146000 Optocoupler
The WL-OCPT optocoupler is designed for precise signal isolation in electronic circuits, featuring a phototransistor output with high reliability and fast response times. Suitable for industrial automation, communication, and control systems, it operates within a temperature range of -65°C to +110°C, ensuring stable performance in harsh environments. Encased in a white LSOPA package, it offers certified RoHS, REACH, and halogen-free approval, making it ideal for environmentally conscious applications requiring high safety standards and reliable optical coupling.
WURTH ELEKTRONIK 140109146000 Optocoupler Specifications:
- Type: Optocoupler Phototransistor
- Package: LSOPA, White Plastic Housing
- Input: DC
- Certification: RoHS, REACH, Halogen Free (IEC 61249-2-21), UL Approval
- Operating Temperature: -65°C to +110°C
- Storage Temperature: -55°C to +125°C
- Isolation Voltage: 5000 V (AC, 1 min)
- Collector Emitter Voltage: 80 V
- Emitter Collector Voltage: 7 V
- Collector Current: 50 mA
- Output Power Dissipation: 150 mW
- Input Forward Voltage: approx. 1.24 V at 10 mA
- Dark Current: 40 nA at 6 V
- Response Time: 18 μs (Fall and Rise Time)
- Peak Forward Current: 60 mA
- Storage & Handling: Moisture Sensitivity Level 1, store in original packaging, avoid impact and direct sunlight
- Soldering Profile: Preheat min 150°C, max 200°C, ramp rate 3°C/sec, peak package temp approx. 260°C for suitable durations
Buy the Wurth Elektronik 140109146000 – Reliable Optical Isolator for Industrial Applications
Order the Wurth Elektronik optocoupler today for robust performance in demanding industrial environments. Featuring high isolation voltage, fast response, and certified environmentally friendly materials, it is ideal for automation, control, and safety-critical applications. Whether for new designs or replacements, purchasing online ensures quick delivery and comprehensive technical support, helping you maintain optimal system reliability and safety standards while minimizing downtime. Trust Wurth Elektronik for quality optoelectronic components designed for long-term industrial use.
Buy Wurth Elektronik 140109146000 optocoupler now and experience unmatched reliability and high-performance optical signal isolation in industrial systems.
