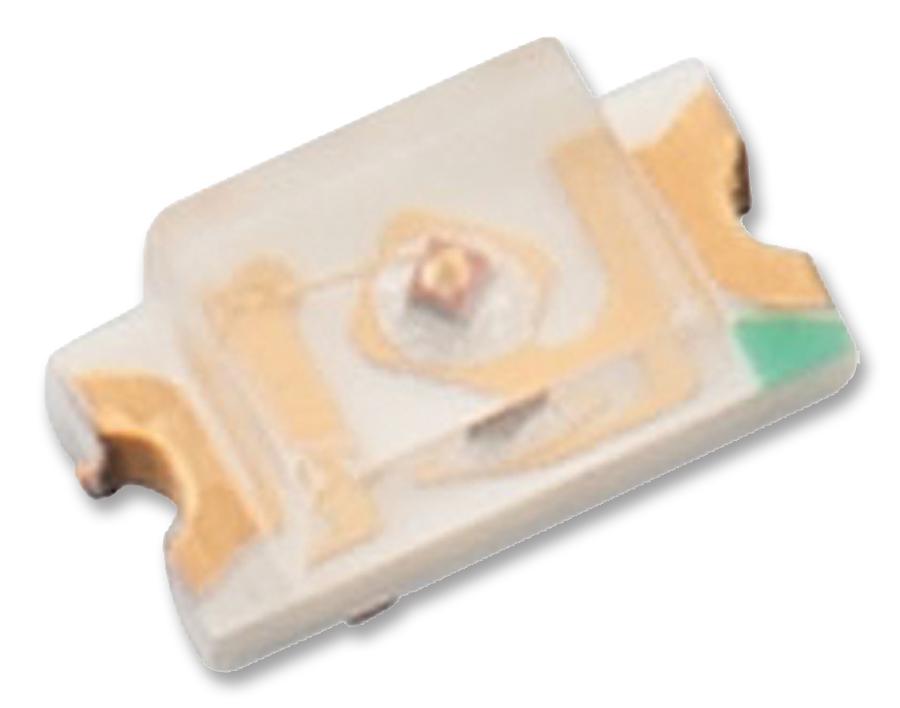

WURTH ELEKTRONIK 150060GS75000 Green SMD Chip LED
The WURTH ELEKTRONIK 150060GS75000 is a compact, surface-mount green LED designed for a variety of applications in general electronic equipment. It utilizes an InGaN chip for efficient light emission and a waterclear lens to maximize light output. With a peak wavelength of 515nm and a dominant wavelength of 520nm, this LED provides a vibrant green color. It is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 150060GS75000 Green SMD Chip LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Green
- Lens Type: Chip LED
- Power Dissipation: 105 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold HBM: 1000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 515 nm
- Dominant Wavelength: 520 nm
- Luminous Intensity: 220-430 mcd
- Forward Voltage: 3.2-3.5 V
- Spectral Bandwidth: 30 nm
- Reverse Current: ≤10 μA
- Viewing Angle: 140°
