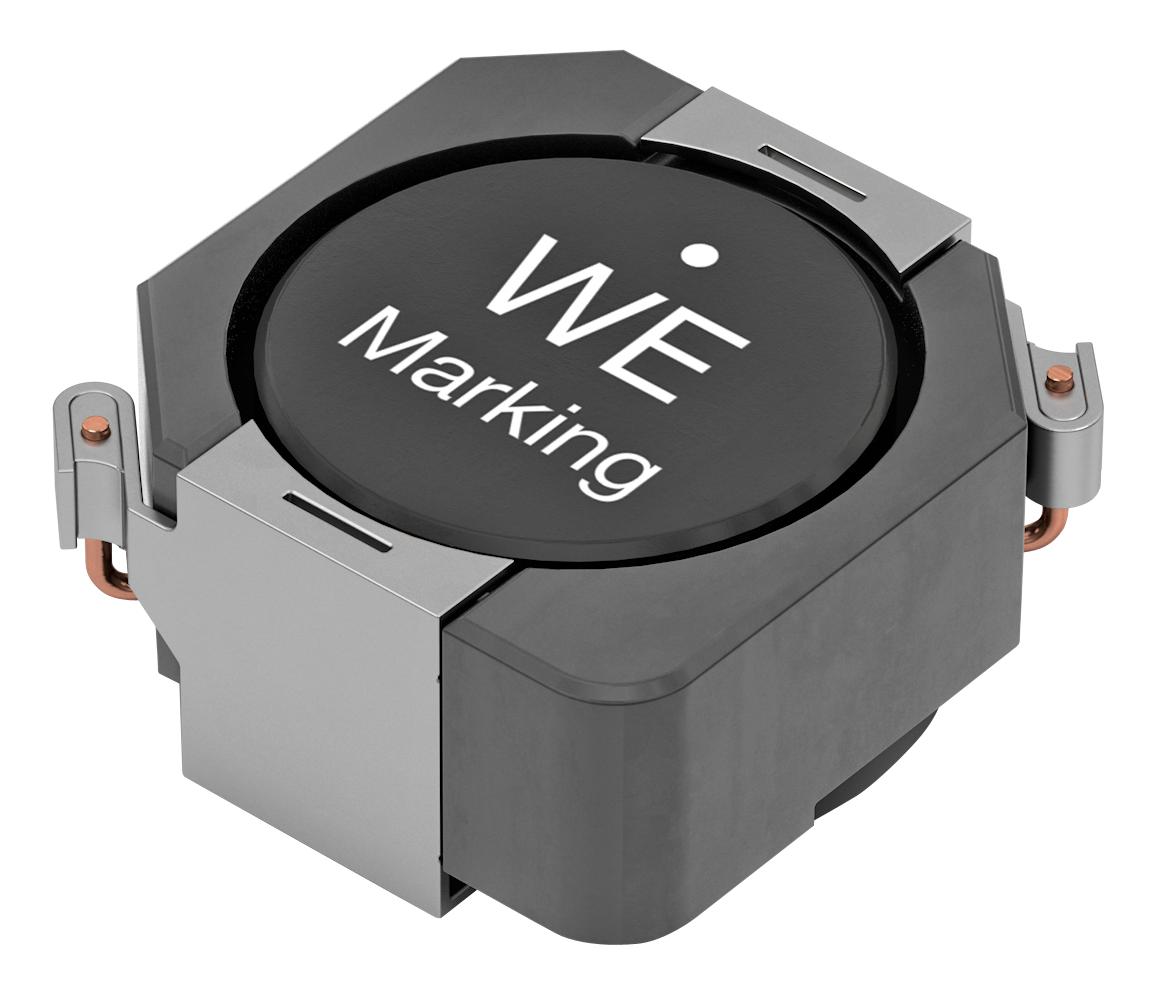

WURTH ELEKTRONIK 7447773150 Shielded Power Inductor
The Shielded Power Inductor from Wurth Elektronik is designed for high-performance electronic circuits. It features a rated current of 2.2 A, maximum operating voltage of 120 V, and complies with RoHS and REACH standards. The inductor offers a saturation current of 3.1 A, inductance of 100 µH with a ±20% tolerance, and a self-resonant frequency of 20.7 MHz. It is suitable for applications requiring reliable magnetic performance, with dimensions optimized for SMT assembly and high thermal stability up to +150°C. Certification and environmental compliance make it ideal for sophisticated electronic systems.
WURTH ELEKTRONIK 7447773150 Shielded Power Inductor Specifications:
- Inductance: 100 µH ±20%
- Rated Current: 2.2 A
- Saturation Current: 3.1 A
- DC Resistance: 53 mΩ @ 20°C
- Max DC Resistance: 69.5 mΩ @ 20°C
- Self Resonant Frequency: 20.7 MHz
- Operating Voltage: 120 V
- Operating Temperature: -40°C to +150°C
- Storage Conditions: < 40°C, < 75% RH
- Moisture Sensitivity Level: 1
- Compliance: RoHS, REACH, Halogen Free (JEDEC 709B)
Buy the Wurth Elektronik Series Shielded Power Inductor: 7447773150
Get the highly reliable shielded power inductor from Wurth Elektronik today. With a 100 µH inductance, 2.2 A rated current, and RoHS compliance, this component ensures stable magnetic performance in high-temperature environments up to +150°C. Compact SMT design makes it suitable for advanced electronic circuits, including power supplies and RF modules. Its environmental certifications and excellent resistance to moisture and mechanical stress guarantee durability and safety across various industrial applications. Purchase ahora and optimize your electronic systems effortlessly.
Order your Wurth Elektronik Series7447773150 high-performance shielded power inductor today and enhance your electronic projects with reliable quality and environmental compliance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447773150?
You can click on the BUY or RFQ button to purchase 7447773150 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447773150?
You can download the 7447773150 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447773150?
WURTH ELEKTRONIK
