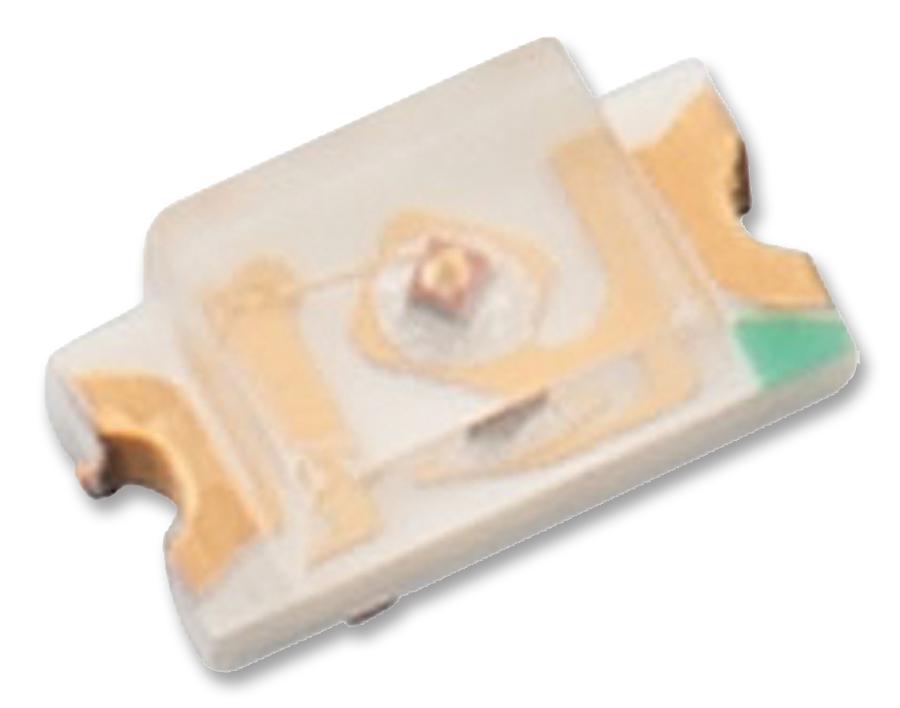

WURTH ELEKTRONIK 150060YS75000 Yellow SMD Chip LED
The WURTH ELEKTRONIK 150060YS75000 is a compact, surface-mount device (SMD) LED designed for integration into various electronic assemblies. This yellow LED features a waterclear lens and is suitable for general electronic equipment applications. It operates with a peak wavelength of 595nm and a dominant wavelength of 590nm, providing a distinct yellow light output. The device is designed for usage in general electronic equipment only and is not authorized for use in equipment requiring high safety standards. Always consult the datasheet for detailed specifications and application guidelines.
WURTH ELEKTRONIK 150060YS75000 Yellow SMD Chip LED Specifications:
- Chip Technology: AlInGaP
- Emitting Color: Yellow
- Lens Type: Chip LED
- Power Dissipation: 72 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level MSL: 3
- Peak Wavelength: 595 nm
- Dominant wavelength: 590 nm
- Luminous Intensity: 90-120 mcd
- Forward Voltage: 2.0-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: ≤10 μA
- Viewing Angle: 140°
