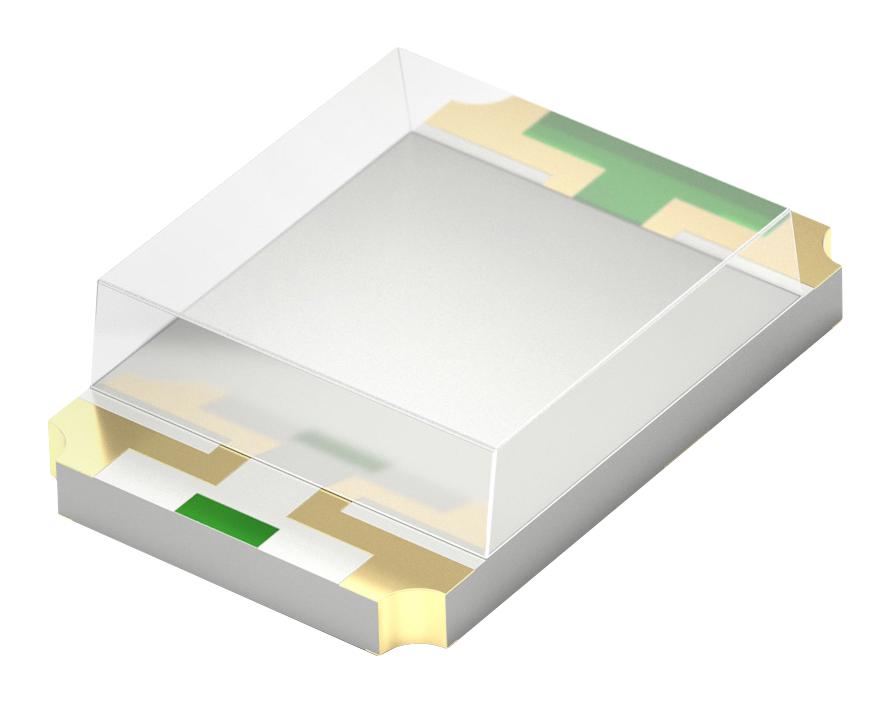

WURTH ELEKTRONIK 150080SG54050 Bi-Color Chip LED
The Würth Elektronik 150080SG54050 is a surface-mount bi-color LED designed for a wide range of electronic applications. Featuring diffused optics, this LED provides a uniform light distribution in both green and super red wavelengths. It is RoHS compliant and operates within a temperature range of -40°C to +85°C, making it suitable for various environmental conditions. This component is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 150080SG54050 Bi-Color Chip LED Specifications:
- Dimensions: [mm] 1.0 ±0.1 x 1.0 x 1.0
- Recommended Land Pattern: [mm] 1.0
- Power Dissipation (Green): 72 mW
- Power Dissipation (Super Red): 48 mW
- Peak Forward Current: 40 mA
- Continuous Forward Current: 20 mA
- Reverse Voltage: 5 V
- Junction Temperature: 115 °C
- Chip Technology: AlInGaP + GaN
- Emitting Color: Super Red & Green
- Lens Type: Diffused
- Operating Temperature: -40 up to +85 °C
- Storage Conditions (in original packaging): < 40 °C ; < 90 % RH
- Storage Conditions (for single parts): -40 up to +100 °C
- Moisture Sensitivity Level: 3
- Peak Wavelength (Green): 520 nm
- Peak Wavelength (Super Red): 645 nm
- Dominant Wavelength (Green): 525 nm
- Dominant Wavelength (Super Red): 630 nm
- Luminous Intensity (Green): 110-230 mcd
- Luminous Intensity (Super Red): 45-100 mcd
- Forward Voltage (Green): 3.3-3.9 V
- Forward Voltage (Super Red): 2.0-2.4 V
- Spectral Bandwidth (Green): 30 nm
- Spectral Bandwidth (Super Red): 20 nm
- Reverse Current: 130 µA
- Viewing Angle: 65°
