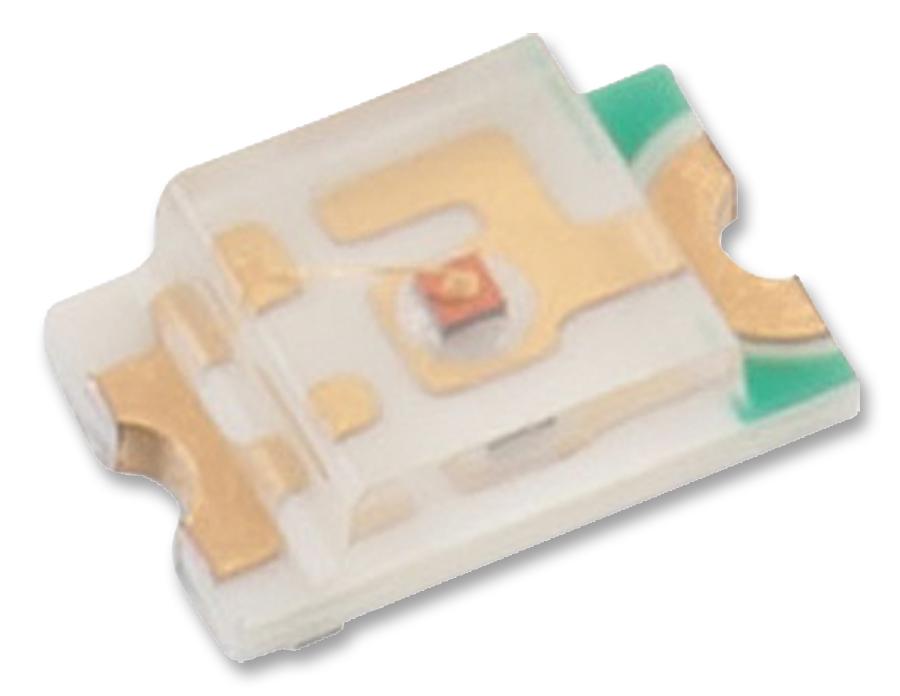

WURTH ELEKTRONIK 150080YS75000 Yellow SMD Chip LED
The WURTH ELEKTRONIK 150080YS75000 is a compact, surface-mount device (SMD) LED emitting yellow light. Designed for general electronic equipment, it's ideal for indicator lights, backlighting, and other applications requiring a small, efficient light source. The LED operates within a temperature range of -40°C to +85°C and is RoHS compliant, ensuring environmental responsibility. It's important to note that this component is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 150080YS75000 Yellow SMD Chip LED Specifications:
- Chip Technology: AlInGaP
- Emitting Color: Yellow
- Lens Type: Chip LED
- Power Dissipation: 72 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level MSL: 3
- Peak Wavelength: 595 nm
- Dominant wavelength: 590 nm
- Luminous Intensity: 90-120 mcd
- Forward Voltage: 2.0-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: 20 μA
- Viewing Angle: 140°
