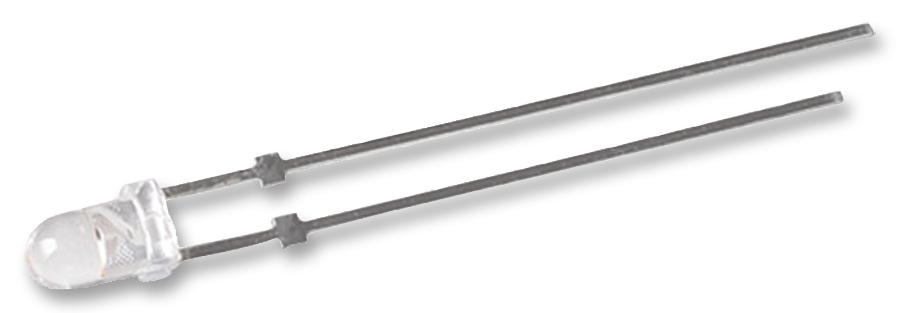

WURTH ELEKTRONIK 151033GS03000 Mono-color Round LED
The Würth Elektronik 151033GS03000 is a through-hole (THT) mounted, mono-color round LED designed for general electronic equipment. Emitting green light through a waterclear lens, this LED offers a luminous intensity ranging from 6500 to 15000 mcd. It operates with a forward voltage between 3.2 and 3.8 volts and a peak wavelength of 525 nm. The LED is suitable for a wide range of applications requiring a compact, reliable light source, such as indicator lights, displays, and backlighting. It is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 151033GS03000 Mono-color Round LED Specifications:
- Power Dissipation: 114 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold HBM: 1000 V
- Operating Temperature: -40 up to +85 °C
- Storage Conditions (in original packaging): < 40 °C ; < 75 % RH
- Storage Conditions (for single parts): -40 up to +100 °C
- Moisture Sensitivity Level (MSL): 1
- Peak Wavelength (λPeak): 525 nm
- Dominant Wavelength (λDom): 530 nm
- Luminous Intensity (IV): 6500-15000 mcd
- Forward Voltage (VF): 3.2-3.8 V
- Spectral Bandwidth (Δλ): 30 nm
- Reverse Current (IREV): 50 μA
- Viewing Angle Phi 0°: 30°
Buy the 151033GS03000 WURTH ELEKTRONIK Mono-color Round LED | myMectronic
Purchase the Würth Elektronik 151033GS03000 securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 151033GS03000?
You can click on the BUY or RFQ button to purchase 151033GS03000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 151033GS03000?
You can download the 151033GS03000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 151033GS03000?
WURTH ELEKTRONIK
