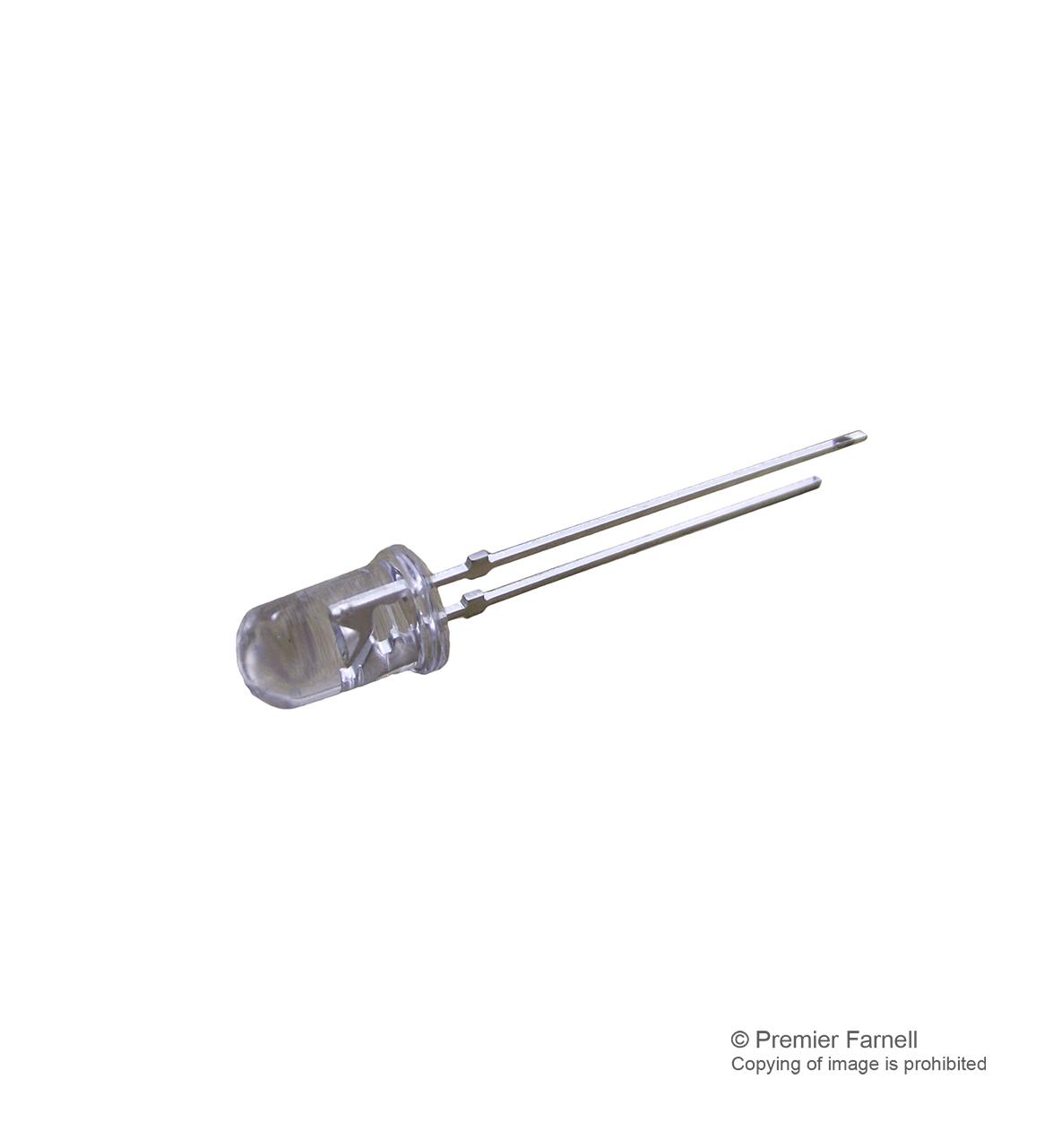

WURTH ELEKTRONIK 151053RS03000 Round Mono-color LED
The Wurth Elektronik WL-TMRW 151053RS03000 is a through-hole mounted (THT) LED designed for general electronic equipment. This red LED features a waterclear lens, providing excellent light transmission. It is suitable for indicator applications, displays, and other lighting needs. The component is designed for general electronic equipment and is not intended for use in safety-critical applications without proper evaluation. It operates with a peak wavelength of 631nm and a dominant wavelength of 623nm, offering a spectral bandwidth of 15nm. The LED's performance is characterized by a luminous intensity ranging from 1800 to 5000 mcd, a forward voltage between 1.9V and 2.6V, and a reverse current of up to 50μA.
WURTH ELEKTRONIK 151053RS03000 Round Mono-color LED Specifications:
- Chip Technology: AlInGaP
- Emitting Color: Red
- Lens Type: Waterclear
- Power Dissipation: 78 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level MSL: 1
- Peak Wavelength: 631 nm
- Dominant wavelength: 623 nm
- Luminous Intensity: 1800-5000 mcd
- Forward Voltage: 1.9-2.6 V
- Spectral Bandwidth: 15 nm
- Reverse Current: 50 μA
- Viewing Angle: 30°
