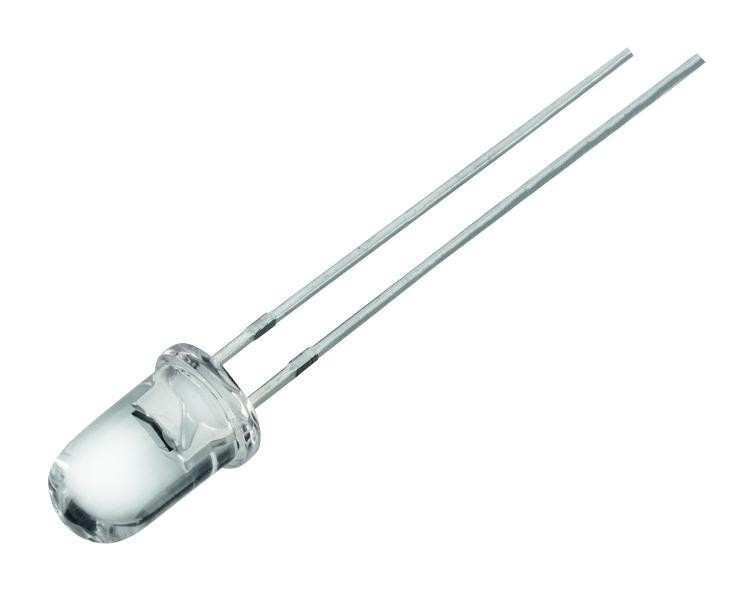

WURTH ELEKTRONIK 1540031EA4590 THT Photodiode Round
The Würth Elektronik 1540031EA4590 is a through-hole (THT) photodiode designed for general electronic equipment. It utilizes a waterclear lens to maximize light transmission and offers a broad spectral bandwidth, making it suitable for various light detection applications. The device is RoHS compliant and operates within a temperature range of -40°C to +85°C. It is not intended for use in critical safety applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 1540031EA4590 THT Photodiode Round Specifications:
- Dimensions: 2.54 ±0.1 mm, 3.0 ±0.25 mm, 1.0 ±0.25 mm, 5.3 ±0.25 mm, 0.5 ±0.25 mm, 2.0 ±1.0 mm, 25.4 min., 3.85 ±0.25 mm, 1.0 ±0.25 mm, 0.7 max., 1.0 max.
- Recommended Hole Pattern: 2.54 mm
- Power Dissipation: 150 mW
- Reverse Voltage: 30 V
- ESD Threshold Human Body Model: 2000 V
- Chip Technology: Si
- Lens Type: Waterclear
- Operating Temperature: -40 up to +85 °C
- Storage Conditions in Original Packaging: < 40 °C ; < 75 % RH
- Storage Conditions for Single Parts: -40 up to +85 °C
- Moisture Sensitivity Level MSL: 1
- Wavelength of Peak Sensitivity: 940 nm
- Range of Spectral Bandwidth: 400-1100 nm
- Photo Current: 3-40 µA
- Dark Current: <100 nA
- Viewing Angle Phi 0°: 45°
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Halogen Free: Conform [ JEDEC JS709B ]
