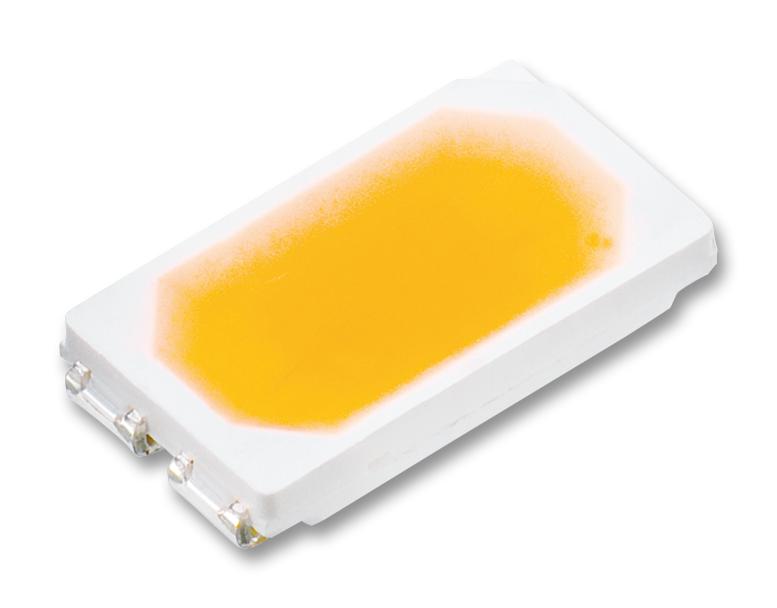

WURTH ELEKTRONIK 158563430 SMD White Top View PLCC LED
The Würth Elektronik WL-SWTP is a surface-mount device (SMD) LED designed for versatile lighting applications in general electronic equipment. This compact LED utilizes InGaN chip technology to produce a warm white light output. It offers a wide viewing angle of 120 degrees, making it suitable for applications requiring broad illumination. The WL-SWTP is RoHS compliant and operates within a temperature range of -40°C to +85°C, ensuring reliable performance in various environments. It is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 158563430 SMD White Top View PLCC LED Specifications:
- Chip Technology: InGaN
- Emitting Color: Warm White
- Lens Type: Top LED
- Chromaticity coordinate X: 0.4293
- Chromaticity coordinate Y: 0.3960
- Luminous Flux: 25-34 lm
- Forward Voltage: 3.0-3.5 V
- Correlated Color Temperature: 3000 K
- Reverse Current: ≤ 5 μA
- Color Rendering Index: 80-85
- Viewing Angle: 120°
- Power dissipation: 630 mW
- Peak Forward Current: 300 mA
- Continuous Forward Current: 180 mA
- Reverse Voltage: 5 V
- ESD Threshold/ Human Body Modell: 2000 V
- Absolute thermal resistance junction to solder point: 35 K/W
- Junction temperature: 130 °C
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C; 60% RH max.
