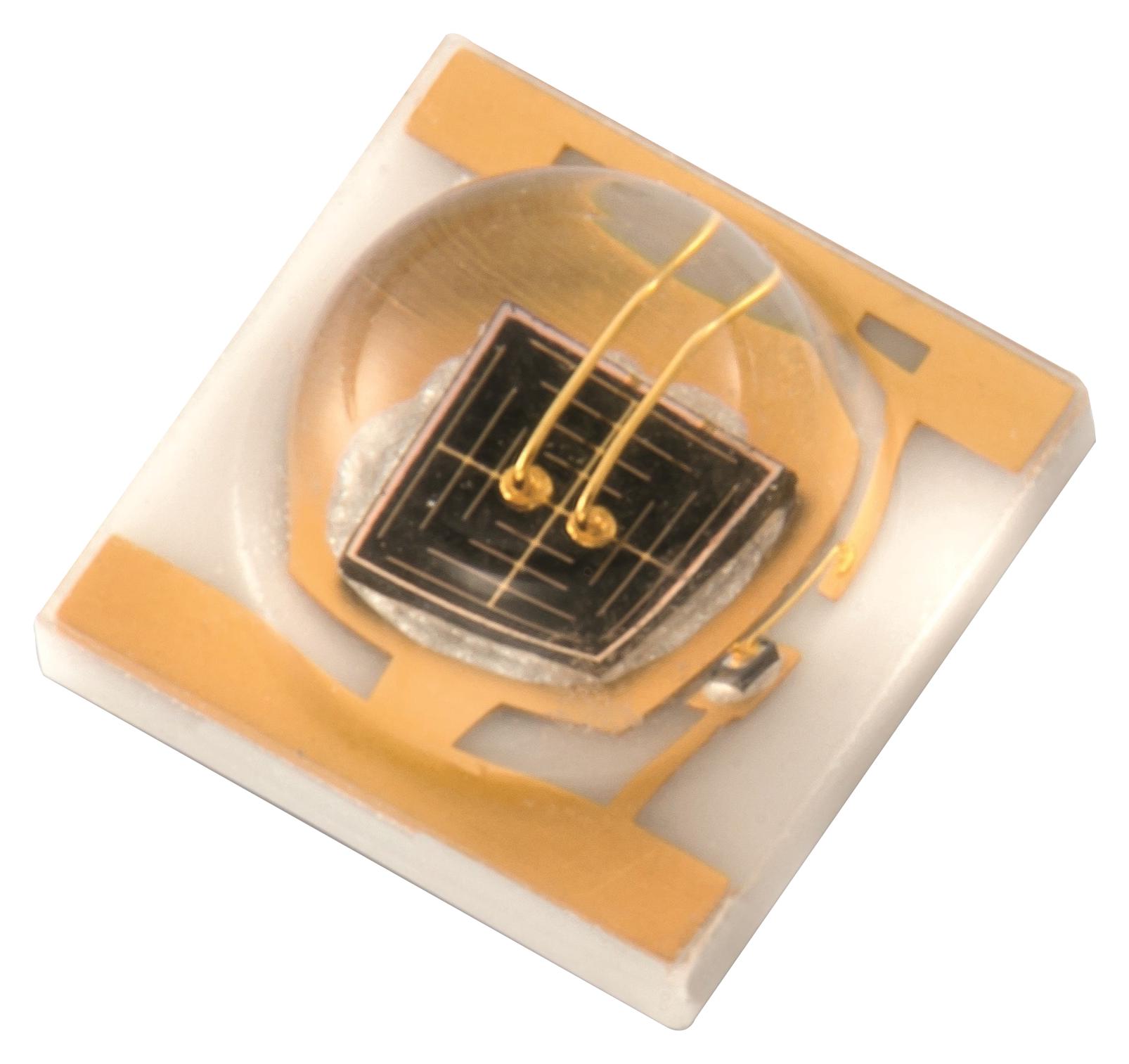

WURTH ELEKTRONIK 15435385A9050 Infrared Emitter
The WL-SIMW SMD Infrared Ceramic is a waterclear, infrared-emitting chip technology device designed for industrial applications requiring precise IR emission. It features a silicone dome lens for waterclear optical properties, an AlGaAs chip technology, and a wavelength around 850-855 nm at 1000 mA. With a maximum junction temperature of 115°C and operating temperatures from -40°C to +85°C, it provides reliable performance. Suitable for use in remote sensing, object detection, and industrial automation, it offers high radiant flux and stable optical output, ensuring consistent operation in demanding environments.
WURTH ELEKTRONIK 15435385A9050 Infrared Emitter Specifications:
- Emitter Technology: AlGaAs
- Optical Properties: Infrared, Waterclear silicone dome lens
- Wavelength: 855 nm (at 1000 mA), centroid 850 nm
- Peak Wavelength: 855 nm at 1000 mA
- Radiant Flux: 500-800 mW at 1000 mA
- Radiant Intensity: 350 mW/sr at 1000 mA
- Forward Voltage: 2.2-2.5 V at 1000 mA
- Spectral Bandwidth: 35 nm
- Viewing Angle: 90°
- Peak Current: 1000 mA
- Reverse Current: 10 μA at 5 V
- Operational Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +115°C
- Moisture Sensitivity Level: MSL 2
- Peak Wavelength: 855 nm, at 1000 mA
- Peak Forward Voltage: 2.2-2.5 V at 1000 mA
- Package: SMD surface-mount device
- Max Junction Temperature: 115°C
Buy the Wirth Infrared Emitter 15435385A9050 – Reliable IR for Industrial Applications
Discover the high-quality Wirth Infrared Emitter 15435385A9050, a waterclear chip technology device designed for industrial automation, remote sensing, and object detection. Featuring a silicone dome lens and AlGaAs chip technology, it offers a wavelength around 850 nm at 1000 mA, ensuring reliable IR emission with high radiant flux of up to 800 mW and a stable optical output. Its compact SMD design, operating temperature range of -40°C to +85°C, and moisture resistance make it ideal for demanding industrial environments. Buying online ensures prompt delivery and assured quality, supporting your automation and sensing needs efficiently.
Get Wirth Infrared Emitter 15435385A9050 today—built for precision, durability, and optimal performance in industrial sensing and automation.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 15435385A9050?
You can click on the BUY or RFQ button to purchase 15435385A9050 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 15435385A9050?
You can download the 15435385A9050 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 15435385A9050?
WURTH ELEKTRONIK
