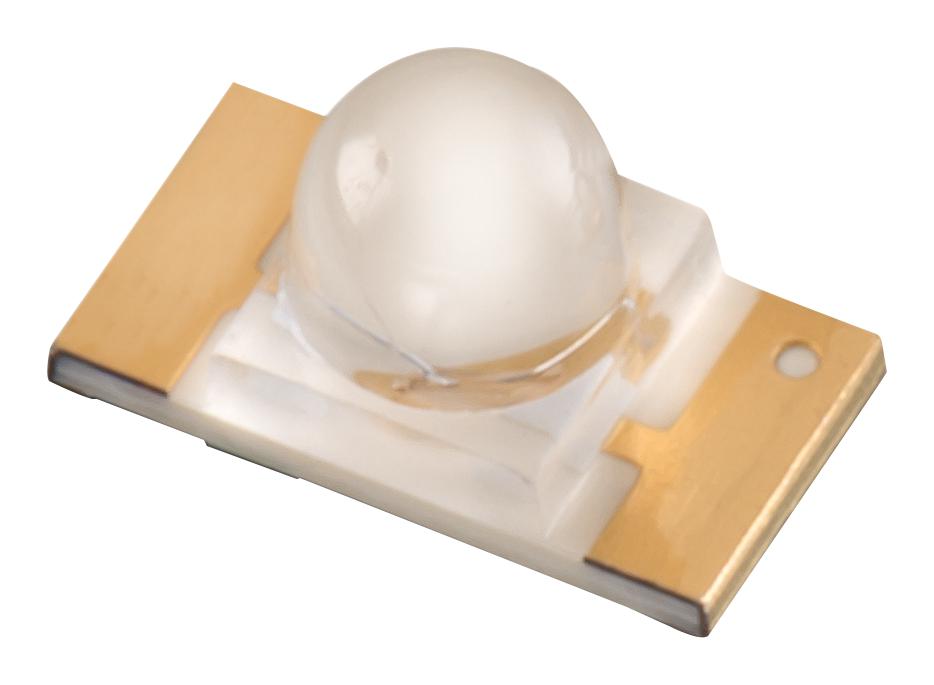

WURTH ELEKTRONIK 156120AS82500 Waterclear LED
Waterclear reverse mount LED suitable for indicator and lighting applications, featuring amber emission, dome lens type, and high reliability. It operates at 20 mA with a forward voltage of 2.4 V and has an optical wavelength of around 605 nm. The LED supports an operating temperature range of -40°C to +85°C and is protected against electrostatic discharge with an ESD threshold of 1000 V. Its robust construction ensures consistent luminous intensity and spectral bandwidth, making it ideal for precision illumination needs in electronic and industrial applications.
WURTH ELEKTRONIK 156120AS82500 Waterclear LED Specifications:
- Lens Type: Dome
- Emission Color: Amber
- Operating Temperature: -40°C to +85°C
- Forward Current: 20 mA
- Forward Voltage: 2.4 V
- Peak Wavelength: 609 nm
- Dominant Wavelength: 605 nm
- Spectral Bandwidth: 12 nm
- Luminous Intensity: 1125 to 2200 mcd at 20 mA
- Viewing Angle: 45° to 70°
- Reverse Voltage: 5 V
- ESD Threshold: 1000 V
- Package Type: SMD Mono-color Waterclear
- Moisture Sensitive Level: MSL 3
- Operating Temperature Range: -40°C to +85°C
- Maximum Power Dissipation: 48 mW
- Peak Forward Current: 40 mA
- Storage Temperature: -40°C to +85°C
Buy the Buy Wirth Elektronik SMD Mono-color Waterclear Part Number 156120AS82500 Online
Order the Wirth Elektronik Waterclear LED online today and enjoy fast, secure delivery. Designed for durability and high performance, this amber SMD LED with dome lens delivers bright illumination and consistent spectral output. Ideal for indicator lights, display backlighting, and industrial illumination, it operates reliably within a temperature range of -40°C to +85°C. Its compact design and robust construction make it perfect for both manual assembly and automated manufacturing processes. Purchase now to enhance your electronic projects with superior lighting components.
Buy Wirth Elektronik 156120AS82500 now and experience unmatched reliability and precision in your LED indicator and lighting projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156120AS82500?
You can click on the BUY or RFQ button to purchase 156120AS82500 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156120AS82500?
You can download the 156120AS82500 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156120AS82500?
WURTH ELEKTRONIK
