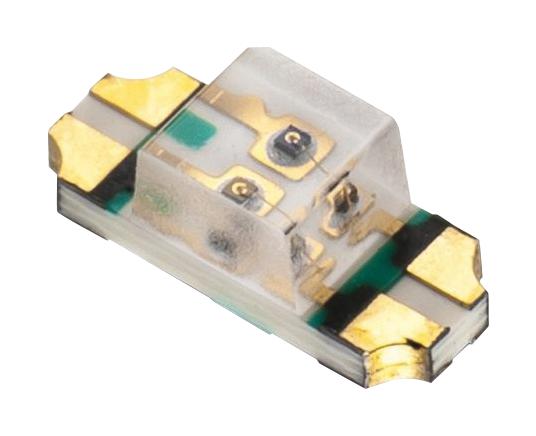

WURTH ELEKTRONIK 156125YV73000 Bi-color LED
The WL-SBRW SMD Bi-color Reverse is a waterclear surface-mount LED designed to emit bright green and yellow colors with a rectangular lens type. It operates within -40°C to +85°C temperatures, features a chip technology of AllnGaP, and has electrical properties including a peak wavelength of approximately 973 nm for bright green and 571 nm for bright yellow. The LED offers high ESD threshold up to 4000 V, and is suitable for applications requiring reliable indicators and signaling in challenging environments. Its design ensures durability, high brightness, and stable optical performance.
WURTH ELEKTRONIK 156125YV73000 Bi-color LED Specifications:
- Chip Technology: AllnGaP
- Emitting Colors: Bright Green & Bright Yellow
- Lens Type: Rectangular
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C; 60% RH max
- Moisture Sensitive Level: MSL 3
- Peak Wavelength: Bright Green approximately 973 nm, Bright Yellow approximately 571 nm
- Forward Voltage: Bright Green 24 V at 20 mA
- Peak Forward Current: 40 mA duty cycle@1KHz, continuous 20 mA
- Power Dissipation: 48 mW
- ESD Threshold: 4000 V
- Optical Properties: High luminous intensity, Viewing angle 120°
- Maximum Ratings: Peak wavelength, Forward voltage, Max current
- Operating temperature range: -40°C to +85°C
- Storage and handling conditions: Moisture sensitivity level 3
Buy the Buy Wirth Elektronik SMD Bi-color Reverse Part Number 156125YV73000 Online
Order the Bi-color LED from Wirth Elektronik today and benefit from a durable, high-brightness component designed for reliable indicator and signaling applications. Operating within -40°C to +85°C, this waterclear surface-mount LED features bright green and yellow emission, a rectangular lens, and high ESD resistance up to 4000 V. Perfect for challenging environments, it ensures stable optical performance, ease of installation, and long-term durability—making it an ideal choice for your electronic signaling needs. Purchase online now to enhance your device reliability.
Buy Wirth Elektronik 156125YV73000 now and experience unmatched reliability and exceptional optical performance in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 156125YV73000?
You can click on the BUY or RFQ button to purchase 156125YV73000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 156125YV73000?
You can download the 156125YV73000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 156125YV73000?
WURTH ELEKTRONIK
