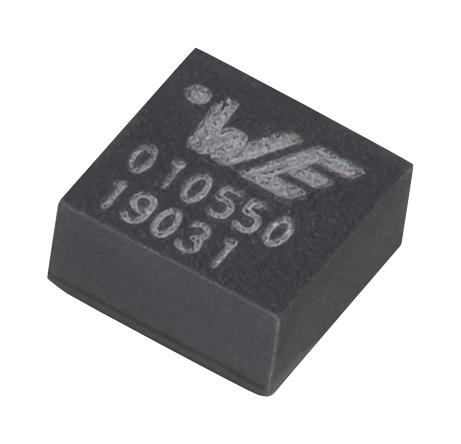

WURTH ELEKTRONIK 171010550 Power Module
The VDMM 171010550 MagI°C MicroModule is a compact, fully integrated DC-DC step-down regulator featuring an integrated MOSFETs, shielded inductor, and flexible control modes. Operating from 2.5V to 5.5V input, it delivers up to 1.2A with efficiency reaching 96% and minimal output ripple. Its regulation scheme offers high efficiency at light loads using PFM mode or constant high-power output via forced PWM. Ideal for small, portable devices, FPGA and DSP power supplies, and low power systems, it also includes thermal, short-circuit, and overcurrent protections, ensuring reliable performance in diverse applications.
WURTH ELEKTRONIK 171010550 Power Module Specifications:
- Input Voltage Range: 2.5V to 5.5V
- Output Voltage Range: 0.8V to 5.5V
- Output Current: Up to 1.2A
- Peak Efficiency: 96%
- Switching Frequency: 4 MHz
- Output Ripple: ±6mV (typical)
- Thermal Shutdown: 160°C
- Thermal Resistance Junction-to-Ambient: 110 K/W
- Junction Temperature Range: -40°C to 125°C
- Operating Ambient Temperature: -40°C to 85°C
- Protection Features: Overcurrent, Overtemperature, Short-circuit, UVLO
- Package: LGA-6EP (2.5 x 2.5 x 1.2mm)
Buy the Buy WURTH ELECTRONIC VDMM 171010550 Power Module Online
Purchase the WURTH ELECTRONIC VDMM 171010550 Power Module online today. This high-efficiency, compact module features an integrated inductor and offers up to 1.2A output current. Ideal for portable, FPGA, and DSP applications, it provides advanced protection features including thermal shutdown, overcurrent, and short-circuit protection. Its flexible regulation modes—the PFM and PWM modes—ensure optimal efficiency at light load and high power output. Designed for reliability in low power systems, it guarantees performance with a small form factor and a rugged, robust construction for versatile usage.
Get WURTH ELECTRONIC 171010550 today—built for precision and long-lasting durability in compact power supply applications.
