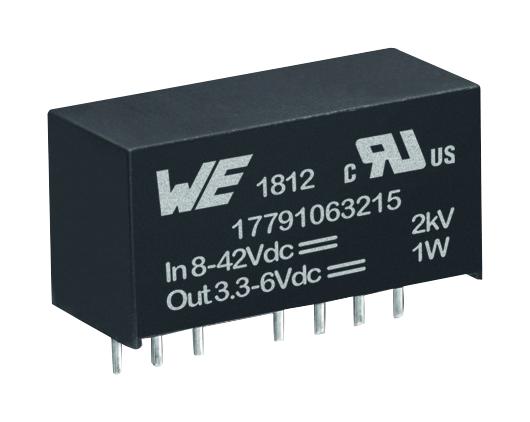

WURTH ELEKTRONIK 17791063215 Variable Isolated Power Module
The WURTH ELEKTRONIK VISM 17791063215 is a regulated MagI3C Power Module designed for industrial applications requiring a functional isolated, fully integrated DC/DC converter. Its wide input voltage range (8V to 42V) and adjustable output voltage (3.3V to 6V) provide flexibility for various designs. The module incorporates features like thermal shut-down, overcurrent, short-circuit, and undervoltage protection, ensuring reliable operation. It's ideal for data acquisition, test and measurement systems, and microcontroller supply applications.
WURTH ELEKTRONIK 17791063215 Variable Isolated Power Module Specifications:
- Input Voltage Range: 8V to 42V
- Output Voltage Range: 3.3V to 6V
- Output Power: 1W
- Isolation Voltage: 2kV (60s)
- Dynamic Power Boost: 600mA
- Operating Temperature: -40°C to 85°C
- Efficiency: Up to 82%
- Output Voltage Ripple: <15mV
- Reference Accuracy: ±0.5%
- Operating Frequency: 300 to 600 kHz
- Package Material: UL94V-0
- Compliance: RoHS & REACH compliant
- Protection Circuits: Thermal shut-down, overcurrent, short-circuit, undervoltage
- Package Type: SIP-8 THT
- Dimensions: 21.8 x 9.2 x 11.1mm
Buy the 17791063215 WURTH ELEKTRONIK Variable Isolated Power Module | myMectronic
Purchase the WURTH ELEKTRONIK 17791063215 Variable Isolated Power Module securely and efficiently.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 17791063215?
You can click on the BUY or RFQ button to purchase 17791063215 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 17791063215?
You can download the 17791063215 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 17791063215?
WURTH ELEKTRONIK
