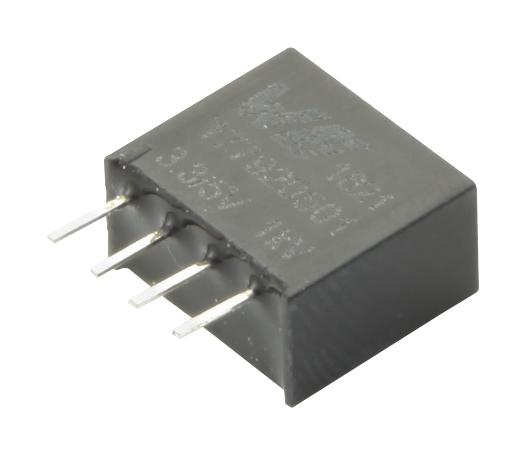

WURTH ELEKTRONIK 177920501 Isolated Unregulated 5V Output
The WURTH ELEKTRONIK WPMIx9200501S is a compact, fully integrated DC/DC converter designed for functional isolation and efficient power delivery. This module simplifies design by integrating the switching power stage, control circuitry, transformer, and capacitors into a single SIP package. It offers a 5V unregulated output with a 1W continuous power rating and is suitable for a wide range of industrial applications including data acquisition systems, test and measurement equipment, and microcontroller power supplies. The module's compact size, integrated components, and ease of assembly contribute to reduced design effort and faster time to market.
WURTH ELEKTRONIK 177920501 Isolated Unregulated 5V Output Specifications:
- Input Voltage (177920501): 2.64 - 3.96 V
- Input Voltage (177920511): 4.00 - 5.75 V
- Input Voltage (177920521): 9.60 - 13.8 V
- Input Voltage (177920531): 19.2 - 27.6 V
- Output Voltage: 4.75 - 5.25 V
- Output Current: 0 - 200 mA
- Output Power: 0 - 1 W
- Isolation Voltage: 1000 V
- Ambient Operating Temperature: -40 to 85 °C
- Efficiency: 79-80%
- Package Material: UL94V-0
- Compliance: RoHS & REACH compliant
- Maximum Overload Current: 300 mA (5s)
Buy the 177920501 WURTH ELEKTRONIK Isolated Unregulated 5V Output | myMectronic
Purchase the WURTH ELEKTRONIK WPMIx9200501S power module securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 177920501?
You can click on the BUY or RFQ button to purchase 177920501 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 177920501?
You can download the 177920501 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 177920501?
WURTH ELEKTRONIK
