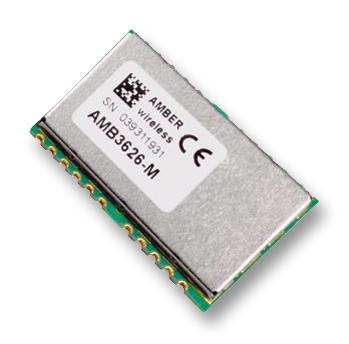

WURTH ELEKTRONIK 2607011113000 Wireless Radio Module
The AMBER wireless AMB3626-M is a compact, low-cost 169 MHz wireless M-Bus radio module ideal for automatic meter reading applications. Supporting Modes N1a to N1f and N2a to N2g, it enables reliable one-way and two-way communication in stationary and mobile systems. Featuring integrated encryption (AES-128), robust protocol control, and low power consumption, it is suitable for battery-powered devices. The module supports UART interface configuration, an external antenna, and operates within a temperature range of -40 to +85°C. Its small dimensions (17 x 27 x 4mm) and high RF sensitivity enable long-range transmission up to 5000 meters under line-of-sight conditions.
WURTH ELEKTRONIK 2607011113000 Wireless Radio Module Specifications:
- Dimensions: 17 x 27 x 4mm
- Frequency Range: 169.406 – 169.468 MHz
- RF Data Rate: 2.4/4.8/19.2 kbps
- Output Power: 15 dBm
- RF Sensitivity: Down to -120 dBm at 50 Ω
- Power Supply: 2.0-3.6 V
- Power Consumption: TX typ. 59 mA, RX typ. 28 mA, Low Power <10 pA
- Operating Temperature: -40 to +85°C
- Range: Up to 5000 meters
- Modulation: 2-(G)FSK, (G)MSK, 4-(G)FSK
- Interface: UART up to 115.2 kbps
- Microcontroller: Texas Instruments MSP430
- Antenna: External antenna pad (50 Ω)
- Conforms to: EN 300 220, EN 301 489, EN 60950, EN 50371
Buy the Buy Amber Wireless AMB3626-M Part Number 2607011113000 Online
Enhance your automatic meter reading systems with the Amber Wireless AMB3626-M, a compact, low-cost 169 MHz radio module supporting EN13757-4 standards. Its small size (17 x 27 x 4mm) and high RF sensitivity enable long-range communication up to 5000 meters. This module features integrated AES-128 encryption, low power consumption, and UART configuration, making it perfect for battery-powered applications in utility meters. Easily connect via external antenna, and enjoy reliable, license-free wireless data transmission for industrial, gas, heat, and electricity meters.
Get Amber Wireless AMB3626-M today—compact 169 MHz radio module designed for reliable wireless meter reading and long-lasting battery operation.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 2607011113000?
You can click on the BUY or RFQ button to purchase 2607011113000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 2607011113000?
You can download the 2607011113000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 2607011113000?
WURTH ELEKTRONIK
