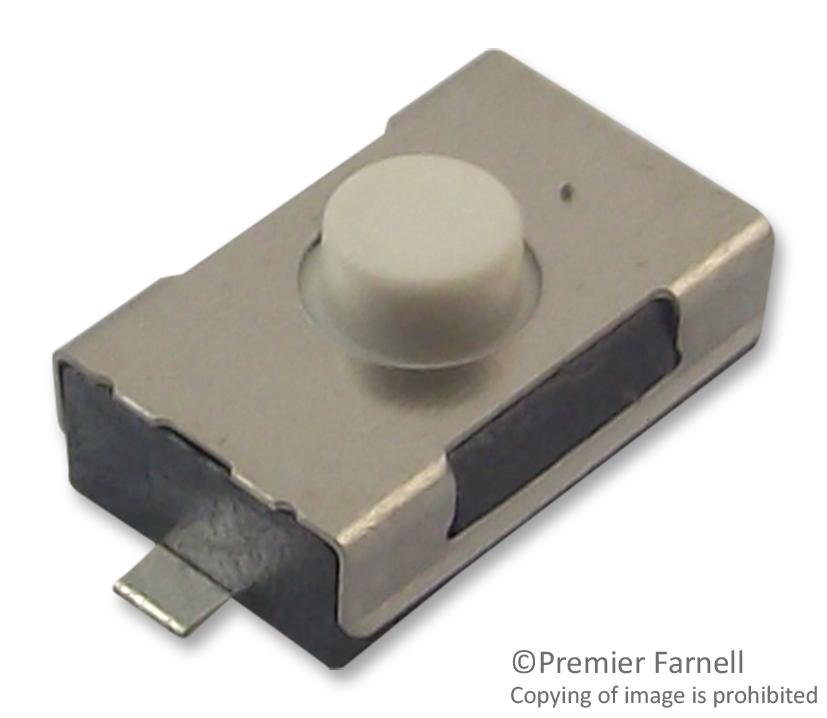

WURTH ELEKTRONIK 434111025826 Tactile Switch
This is a high-quality SMT tactile switch designed for reliable electronic switching in various applications. Featuring stainless steel contact material and a durable black cP actuator and frame, it supports a rated current of 50 mA and a voltage of 12 V. The switch has a stroke of 0.25 mm, with an operation force of 160 gf. Its operating temperature ranges from -40°C to +85°C, and it complies with UL94 V-0 flammability standards. Suitable for automation, control panels, and electronic devices requiring high durability and precise tactile feedback.
WURTH ELEKTRONIK 434111025826 Tactile Switch Specifications:
- Material: Stainless Steel contact, Black cP actuator and frame
- Operating Temperature: -40°C to +85°C
- Flammability Rating: UL94 V-0
- Rated Current: 50 mA
- Rated Voltage: 12 V
- Contact Resistance: 100 milliohms initial
- Insulation Resistance: min. 100 MΩ at 500 V DC
- Withstanding Voltage: 250 V AC for 1 minute
- Bounce Time: Max. 10 ms
- Operation Force: 160 gf
- Mechanical Life: 30,000 cycles
- Stroke: 0.25 mm ± 0.1 mm
- Dimensions: 60x38 mm
- Storage Conditions: < 40°C, < 75% RH
Buy the Würth Elektronik 434111025826 – Reliable SMT Tactile Switch for Industrial Applications
Get your Würth Elektronik Series 434111025826 tactile switch now online and ensure precise, reliable switching in your electronic devices. Perfect for automation, control panels, and high-reliability applications, this switch features stainless steel contacts and UL94 V-0 flame rating for safety and durability. Its compact size of 60x38 mm makes it ideal for space-constrained projects. With a mechanical life of 30,000 cycles and a stroke of 0.25 mm, it guarantees consistent performance. Purchase today for fast delivery and trusted quality that meets industrial standards.
Order your Würth Elektronik Series 434111025826 tactile switch today and give your projects the dependable quality they deserve.
