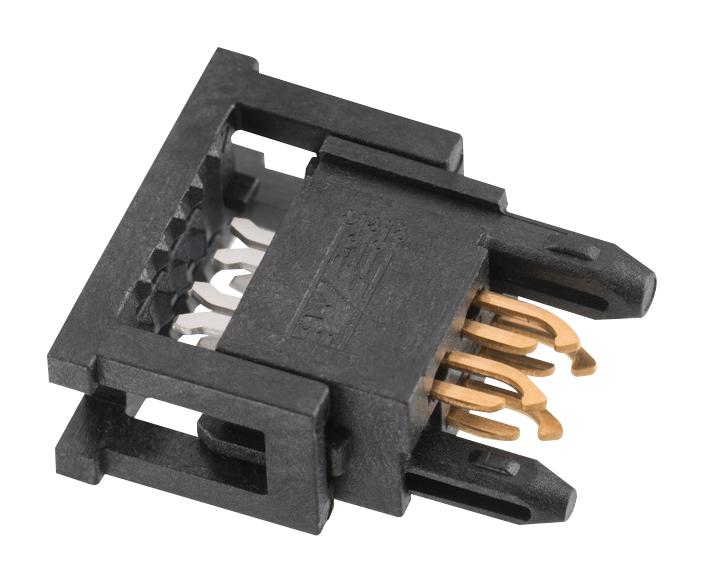

WURTH ELEKTRONIK 490107670412 SKEDD Connector
This high-quality SKEDD IDC connector by Wurt Elektronik offers reliable, tool-less plug-in connection with exceptional electrical performance and durability. Designed for versatile electronic applications, it features easy installation, RoHS compliance, and a robust contact system with gold plating for optimal conductivity. Suitable for debugging, programming, and permanent mounting, this connector ensures secure connections with a high mating cycle count. Its halogen-free insulation and operating temperature range from -25°C to +105°C make it ideal for industrial, automation, and control systems, delivering long-lasting reliability in challenging environments.
WURTH ELEKTRONIK 490107670412 SKEDD Connector Specifications:
- Pitch: 2.54 mm
- Application: permanent, debugging, programming
- Contact Material: Copper (Au and Sn plated)
- Insulation Flammability: UL94V-0
- Operating Temperature Range: -25°C to +105°C
- Rated Current: 1 A
- Working Voltage: 100 VAG
- Contact Resistance: Max. 20 mΩ at 20°C
- Insulation Resistance: Min. 1000 MΩ at 20°C
- Durability (Mating Cycle): 950 cycles
- Material: Halogen-free, Black insulating material
- Storage Conditions: Use within 12 months, avoid direct sunlight, store in original packaging
- Not suitable for high-reliability safety-critical applications without pre-evaluation
Buy the Wurth Elektronik 490107670412 – Reliable SKEDD Connector for Industrial Applications
Order the Wurth Elektronik SKEDD Connector online today for a secure, tool-less connection solution suitable for industrial, testing, and automation tasks. Designed with gold-plated contacts and halogen-free insulation, this connector offers long-lasting, reliable electrical performance under demanding conditions. Its high mating cycles and temperature tolerance ensure dependable operation in industrial, automation, and control systems. Purchase now to ensure seamless integration into your electronic projects with fast delivery and trusted quality, empowering your manufacturing and testing processes efficiently.
Get Wurth Elektronik 490107670412 today—built for precision, durability, and easy assembly in industrial and automation systems.
