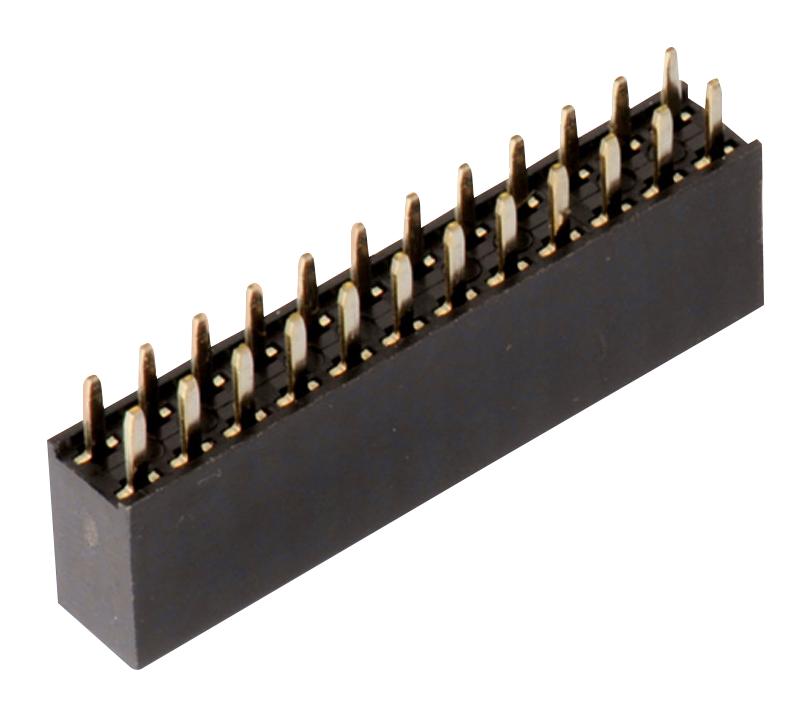

WURTH ELEKTRONIK 61300421821 Dual Socket Header
The WR-PHD Dual Socket Header from Wurth Elektronik is a high-precision, 2.54 mm pitch connector designed for various electronic applications. Made with copper alloy contacts plated in gold, it features a PBT insulator rated UL94V-0, capable of operating from -40°C to +105°C. With a durable 25 mating cycle rating, this component supports a rated current of 3 A at 250 V, ensuring reliable connections in demanding environments. Its compact, robust construction makes it suitable for industrial, automation, and control systems requiring high reliability and efficient space utilization.
WURTH ELEKTRONIK 61300421821 Dual Socket Header Specifications:
- Pitch: 2.54 mm
- Material: Copper Alloy, Gold Plating
- Insulator Material: PBT, UL94V-0 rated, Black color
- Rated Current: 3 A
- Working Voltage: 250 V
- Operating Temperature: -40°C to +105°C
- Durability: 25 Mating cycles
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Preheat Temperature: Min 100°C, Typical 120°C, Max 130°C
- Peak Solder Temperature: 250°C - 260°C, Max 10 sec
- Solder Profile: Wave soldering, RoHS compliant
- Certification: UL Approval, RoHS, REACh
Buy the Wurth Series Dual Socket Header: 2.54 mm Pitch Gold Plated Contacts: 61300421821
Enhance your electronic projects with the Wurth Elektronik WR-PHD Dual Socket Header. Featuring a 2.54 mm pitch, gold-plated contacts, and rated for 3 A, it offers high reliability for industrial and automation systems. Its durable construction supports 25 mating cycles, ensuring long-term performance. Suitable for wave soldering and RoHS compliant, this component improves connection stability and space efficiency. Purchase online today to benefit from quick delivery and expert support, ensuring your designs meet the highest standards of quality and durability.
Buy Wurth Elektronik WR-PHD Dual Socket Header now and experience unmatched reliability and performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61300421821?
You can click on the BUY or RFQ button to purchase 61300421821 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61300421821?
You can download the 61300421821 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61300421821?
WURTH ELEKTRONIK
