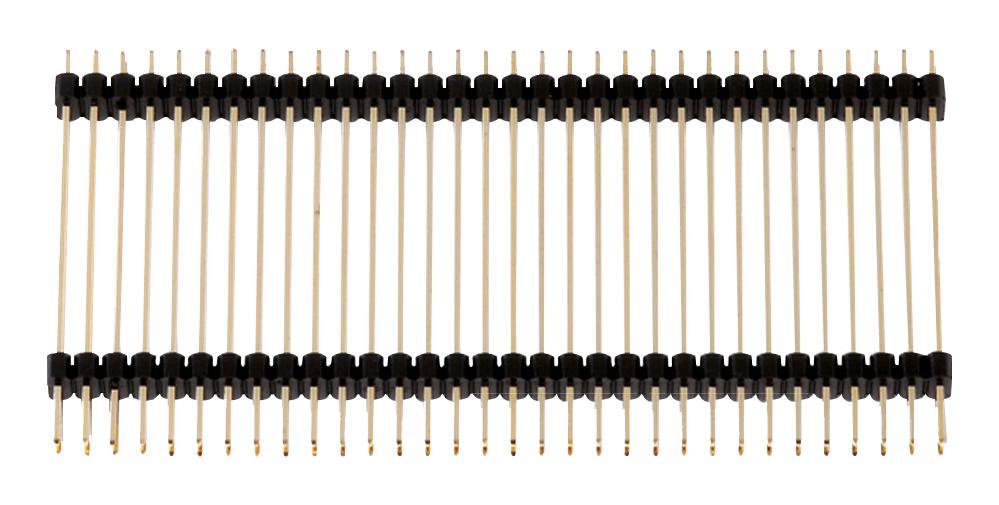

WURTH ELEKTRONIK 61306428421 Dual Board Stacker
The WR-PHD Dual Board Stacker from Wurth Elektronik is designed for efficient stacking of electronic circuit boards, equipped with 64 pins and a pitch of 2.54 mm. Made from high-quality copper alloy with gold-plated contacts, it offers reliable electrical connections suitable for industrial and electronic equipment. Rated for 3 A current and operating voltages up to 250 V, with a temperature range from -40°C to +105°C, ensuring durability in demanding environments. Certification includes UL, RoHS, and REACH compliance, making it ideal for various high-reliability applications.
WURTH ELEKTRONIK 61306428421 Dual Board Stacker Specifications:
- Pins: 64
- Length: 81.28 mm
- Pitch: 2.54 mm
- Material: Copper Alloy
- Contact Plating: Gold
- Rated Current: 3 A
- Working Voltage: 250 V AC
- Insulation Material: PABT
- Flammability Rating: UL94V-0
- Operating Temperature: -40°C to +105°C
- Durability: 25 Mating cycles
- Dimensions: Length 81.28 mm, Pitch 2.54 mm
- Certification: UL, RoHS, REACH
Buy the Wurth Elektronik 61306428421 – Reliable Dual Board Stacker for Industrial Applications
Enhance your electronic assemblies with the Dual Board Stacker from Wurth Elektronik. Featuring 64 gold-plated contacts with a 2.54 mm pitch, rated for 3 A and capable of withstanding up to 25 mating cycles, this connector ensures secure and reliable connections. Certified UL94V-0, RoHS, and REACH compliant, it operates from -40°C to +105°C, making it versatile for various industrial and high-reliability applications. Order online today and streamline your manufacturing process with top-quality connectors designed for durability.
Buy Wurth Elektronik 61306428421 now and experience unmatched reliability and performance in electronic board stacking.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61306428421?
You can click on the BUY or RFQ button to purchase 61306428421 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61306428421?
You can download the 61306428421 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61306428421?
WURTH ELEKTRONIK
