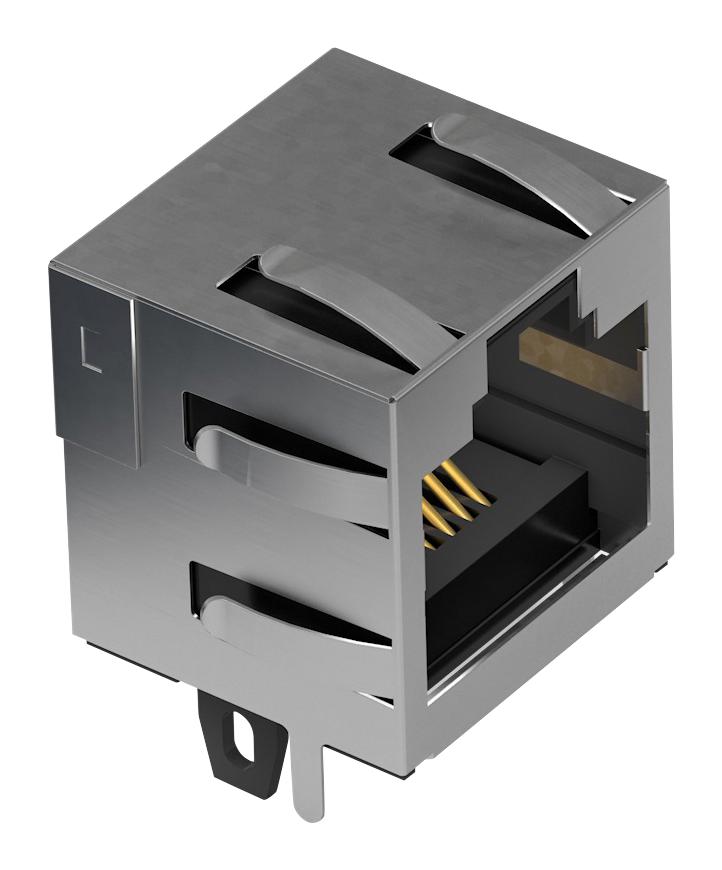

WURTH ELEKTRONIK 615008160221 Modular Jack THT Connector
The Würth Elektronik WR-MJ Modular Jack THT (Part Number 615008160221) is a robust and reliable connector designed for through-hole mounting. It is specifically engineered for horizontal, shielded applications, offering excellent EMI performance and compatibility with Cat6 cabling. This connector is suitable for a wide range of electronic equipment, providing secure and dependable connections. It is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 615008160221 Modular Jack THT Connector Specifications:
- Recommended Hole Pattern: 13.7 ±0.15, 7.14 ±0.15, 2.04 ±0.15, 1 ±0.15, 14.8 ±0.15, 15 ±0.15
- Thickness: 1.6mm
- Number of Pins: 8P8C
- Durability: 750 Mating cycles
- Insulator Material: PA9T
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Selective Gold
- Contact Type: Wired
- Operating Temperature: -40 up to +85 °C
- Rated Current: 1.5 A
- Working Voltage: 50 V (AC)
- Withstanding Voltage Pin to Pin: 1000 V (AC)
- Withstanding Voltage Shielding to Pin: 1500 V (AC)
- Contact Resistance: 20 mΩ (max.)
- Insulation Resistance: 1000 MΩ (min.)
- RoHS Approval: Compliant [2011/65/EU & 2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- UL Approval: E324776
- Packaging Unit Material: Plastic
- Packaging Unit: 50 pcs
- Tray Width W2 TRA: 290 mm (typ.)
- Tray Width W1 TRA: 238.5 mm (typ.)
- Tray Width W TRA: 26.5 mm (typ.)
- Tray Width 1 TRA: 180 mm (typ.)
- Tray Width 2 TRA: 116 mm (typ.)
- Tray Height H TRA: 14 mm (typ.)
- Carton Width W C: 380 mm
- Carton Height H C: 1900 mm
