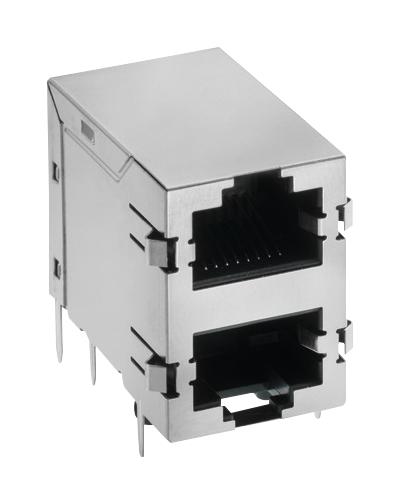

WURTH ELEKTRONIK 615016240521 Modular Jack Tab Up
The Würth Elektronik WR-MJ Modular Jack (Part Number 615016240521) is a robust connector designed for use in a wide range of electronic equipment. This 8P8C connector provides horizontal shielding and a dual-stacked port with an EMI panel finger, ensuring reliable signal transmission and electromagnetic interference protection. It is RoHS compliant and suitable for general electronic applications, excluding those requiring stringent safety or reliability standards such as aerospace or medical devices. The connector's durable construction and gold-plated contacts ensure long-term performance and reliability.
WURTH ELEKTRONIK 615016240521 Modular Jack Tab Up Specifications:
- Number of Pins (xPxC): 8P8C
- Durability: 500 Mating cycles
- Insulator Material: PBT
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Selective Gold
- Contact Type: Stamped
- Shielding Material: Bronze
- Shielding Plating: Nickel (Ni)
- Operating Temperature: -40 up to +85 °C
- Rated Current (IR): 1.5 A
- Working Voltage: 120 V (AC)
- Withstanding Voltage: 1000 V (AC) 1 min
- Contact Resistance (R): 20 mΩ max.
- Insulation Resistance (RISO): 500 MΩ min.
- UL Approval: E324776
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
