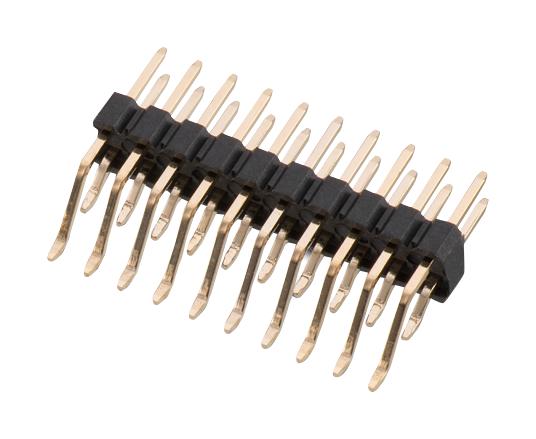

WURTH ELEKTRONIK 621316284521 SMT Connector
The WR-PHD SMT Angled Dual Pin is a high-reliability electrical connector designed for precise surface-mount applications. Made from copper alloy with gold plating, it offers durability and excellent conductivity. Suitable for electronic equipment requiring secure and efficient connections in compact spaces, this connector supports a rated current of 2A and working voltage of 200 VAC. Its robust construction ensures long-term performance, and it complies with RoHS, REACH, and UL approvals. It is ideal for use in automation, control systems, and electronic assemblies demanding precise pin alignment and high-quality contact resistance.
WURTH ELEKTRONIK 621316284521 SMT Connector Specifications:
- Material: Copper Alloy with Gold Plating
- Rated Current: 2 A
- Working Voltage: 200 VAC
- Contact Resistance: 20 mΩ maximum
- Insulation Resistance: 1000 MΩ minimum
- Temperature Range: -40°C to +105°C
- Dimensions: Length varies with model, pin length 14mm, pitch 2mm
- Compliance: RoHS, REACH, UL Listed
- Insulator Material: PAST, UL94 V-0 rated
- Pin to Pin (Middle): 14 mm
- Durability: 500 mating cycles
- Max. Coplanarity: 100 μm
Buy the Buy WURTH SMT Angled Dual Pin Part Number 621316284521 Online
Purchase the WURTH SMT Angled Dual Pin online today and benefit from reliable, high-performance electrical connections suitable for automation, control systems, and electronic assemblies. This gold-plated connector supports 2A rated current and 200VAC working voltage, ensuring durability and consistent contact resistance. Its compact, angled design makes it perfect for space-constrained applications, with up to 500 mating cycles. Enjoy fast delivery, genuine quality, and technical support when ordering from our trusted online platform—perfect for engineers and technicians seeking top-grade connectors.
Order your WURTH Series621316284521 SMT Angled Dual Pin today and ensure secure, high-quality connections for your electronic projects.
