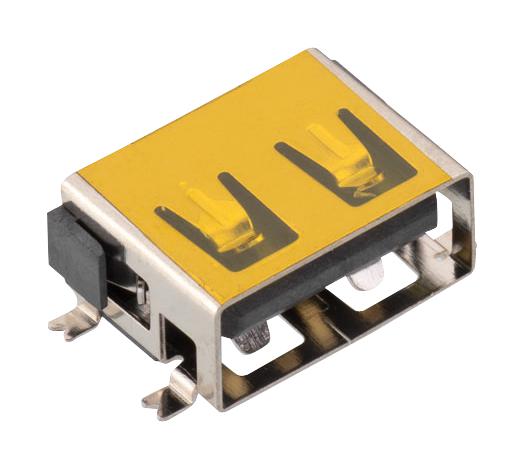

WURTH ELEKTRONIK 629104190121 USB Horizontal Connector
The USB 2.0 Horizontal Short Type SMT connector features a durable brass contact material with gold over nickel plating for reliable electrical connections. Designed for easy surface-mount installation, it supports a maximum rated current of 1.5A and withstands voltages up to 30VAC. The insulator is made from flame-retardant LCP with UL94V-0 rating, ensuring safety and durability. Suitable for electronic devices requiring quick, secure USB connectivity, this connector offers RoHS compliance and high performance in industrial and consumer applications.
WURTH ELEKTRONIK 629104190121 USB Horizontal Connector Specifications:
- Material: Brass contacts with Nickel plating
- Insulator Material: LCP, UL94V-0 rated
- Contact Resistance: Max 30 mΩ
- Rated Current: 1.5 A
- Working Voltage: 30 VAC
- Contact Plating: Gold over Nickel
- Operating Temperature: -40°C to +85°C
- Certification: RoHS approved, Halogen Free, IEC 61249-2-21, JEDEC JS709B
- Durability: 1500 mating cycles
- Packaging: Tape and Reel & Mylar
- Pin Count: 4
- Connector Type: Receptacle, Horizontal - Short Type
Buy the Wurth Elektronik 629104190121 – Reliable USB 2.0 Horizontal Connector for Industrial Applications
Enhance your electronic device with this high-quality USB 2.0 horizontal connector, designed for surface-mount technology. Featuring gold over nickel contacts, it supports a maximum current of 1.5A and withstands voltage up to 30VAC. The flame-retardant insulator made of UL94V-0 rated LCP ensures safety, while the robust design allows for up to 1500 mating cycles. Suitable for industrial, consumer, and automotive electronics, this connector guarantees excellent electrical performance and durability in demanding environments.
Buy Wurth Elektronik 629104190121 now and experience unmatched reliability with high-performance USB connectivity for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 629104190121?
You can click on the BUY or RFQ button to purchase 629104190121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 629104190121?
You can download the 629104190121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 629104190121?
WURTH ELEKTRONIK
