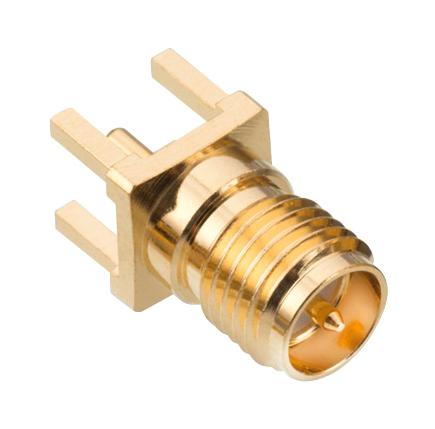

WURTH ELEKTRONIK 63012002124503 Reverse Polarity SMA Jack
The Würth Elektronik WR-RPSMA Reverse Polarity SMA Jack is a precision-engineered RF connector designed for reliable signal transmission in a variety of electronic applications. Constructed with brass and gold-plated contacts, it ensures low signal loss and excellent corrosion resistance. This connector is suitable for use in general electronic equipment and is not intended for critical safety applications without proper evaluation. It adheres to industry standards like MIL-STD-348 and offers a robust mating cycle performance.
WURTH ELEKTRONIK 63012002124503 Reverse Polarity SMA Jack Specifications:
- Recommended Hole Pattern: 5.08 ±0.05, 2.54 ±0.05, q 1.02, 5.08, Ø 1.27
- Insulator Material: PTFE
- Insulator Color: White
- Center Contact Material: Brass
- Center Contact Plating: Gold, min. 0.76µm over Nickel
- Body Material: Brass
- Body Plating: Gold, min. 0.076µm over Nickel
- Interface: MIL-STD-348
- Connector Type: RP SMA
- Gender: Jack
- Orientation Type: Straight
- Withstanding Voltage: 1000 V (RMS) @ 500 V (AC) in 60 sec
- Center Contact Retention (Axial): 26.7 N
- Mating Cycle: 500 Cycles
- Recommended Mating Torque: 57 Ncm
- Operating Temperature: -65 up to +165 °C
- Impedance: 50 Ω (DC~18 GHz)
- Frequency Range: DC~18 GHz
- VSWR (DC~12.4 GHz): 1.2 (max)
- Insertion Loss (DC~12.4 GHz): 0.14 dB (max)
- VSWR (12.4 GHz~18 GHz): 1.4 (max)
- Insertion Loss (12.4 GHz~18 GHz): 0.2 dB (max)
- Insulation Resistance: 5000 MΩ @ 500 V (DC) in 120 sec
- Contact Resistance Initial: 3 mΩ (max)
- Contact Resistance After Test: 4 mΩ (max)
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Halogen Free: Conform [ JEDEC JS709B ]
