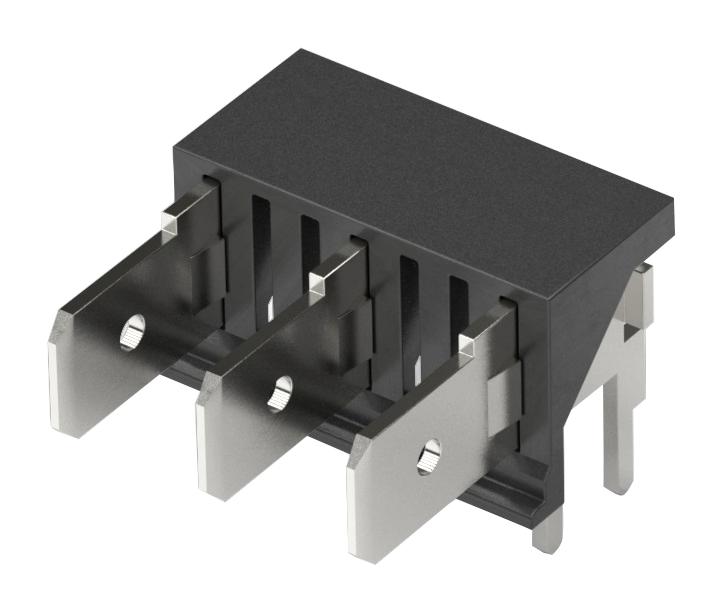

WURTH ELEKTRONIK 638363122004 Male Right Angled Header Blade
The Würth Elektronik 638363122004 is a male right-angled header blade specifically engineered for use in general electronic equipment. Designed with a 7.62mm pitch, this header provides a secure and reliable connection. It is RoHS compliant, demonstrating a commitment to environmental responsibility. The header's right-angled design allows for efficient space utilization in compact electronic assemblies. Suitable for a wide range of applications, it ensures robust and dependable performance in various electronic systems. Always consult Würth Elektronik for applications requiring high safety and reliability standards.
WURTH ELEKTRONIK 638363122004 Male Right Angled Header Blade Specifications:
- Recommended Hole: 1, 5.08 ±0.1, O 1.5 ±0.1
- Pattern Properties: pl ±0.2
- Pin to Pin (Middle): 22.86 mm
- Length: 26.98 mm
- Insulator Material: PC
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Steel
- Contact Plating: Tin
- Contact Type: Stamped
- Durability: 500 Mating cycles
- Pitch: 7.62 mm
- Operating Temperature: -30 up to +120 °C
- Rated Current: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance: 5 MΩ
- Withstanding Voltage: 1600 V (AC)
- Contact Resistance: 20 mΩ
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACh Approval: Conform or declared [ (EC)1907/2006 ]
- Glow Wire Approval: Compliant [ IEC 60335-1 ]
- cULus Approval: E150931 [ Cat.N° : CQQ, CQS(3) ]
- Packaging Specification - Carton LC(mm): 370
- Packaging Specification - Carton WC(mm): 290
- Packaging Specification - Carton HC(mm): 150
- Packaging Specification - Carton No. of Boxes: 10
- Packaging Specification - Carton pcs.: 500
- Packaging Specification - Carton Material: Paper
