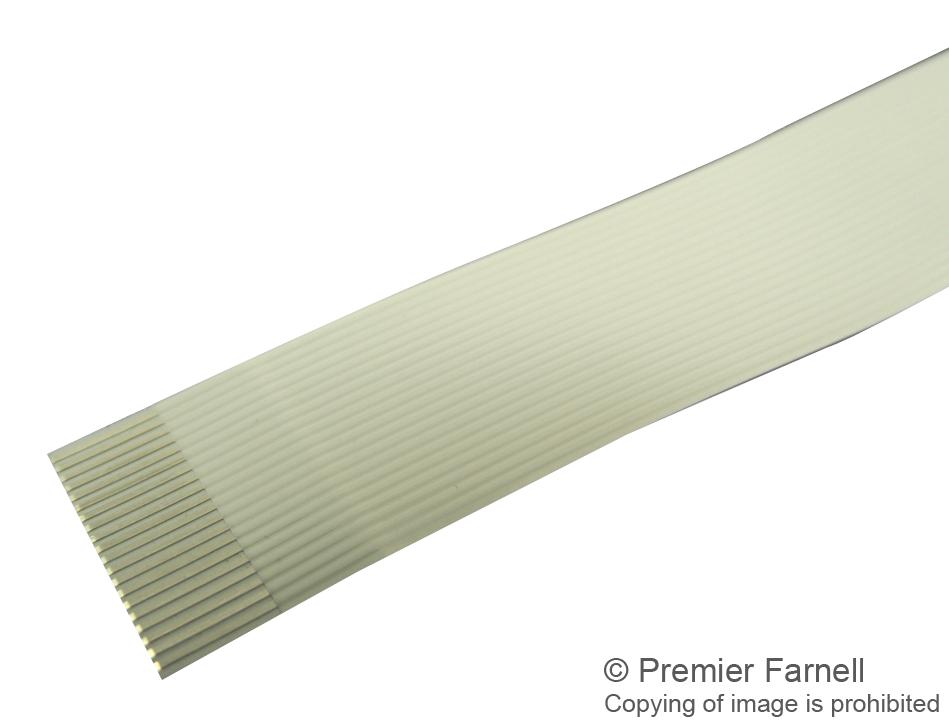

WURTH ELEKTRONIK 687730100002 Flat Flexible Cable
The 687730100002 is a 100mm, 30-pin ribbon cable designed for reliable electrical connections in electronic systems. It features tin-plated copper contacts, a white PET insulator, and a blue PET support tape, ensuring durability and consistent performance. Rated for a maximum current of 0.5A and a working voltage of 60VAC, it also has a high insulation resistance of 1000 megaohms and a contact resistance of 20 milliohms. Built for durability, it withstands up to 20 mating cycles and complies with safety standards, making it suitable for industrial and electronic equipment applications.
WURTH ELEKTRONIK 687730100002 Flat Flexible Cable Specifications:
- Number of Pins: 30
- Cable Length: 100 mm
- Pin Pitch: 0.50 mm
- Contact Material: Tin-plated Copper
- Insulator Material: PET (White)
- Support Tape Material: PET (Blue)
- Support Tape Lengths: 8 mm each
- Support Tape Thickness: 0.225 mm
- Insulation Thickness: 0.043 mm
- Rated Current: 0.5 A
- Working Voltage: 60 V
- Withstanding Voltage: 500 V (1 min, no breakdown)
- Contact Resistance: 20 milliohms
- Insulation Resistance: 1000 megaohms
- Durability: Up to 20 mating cycles
- Operating Temperature Range: -30°C to +105°C
- Flammability Rating: UL SUB.758
- Certification: cULus Approval
- Moisture Resistance: 96 hours at 40°C, 95% RH
- Heat Resistance: 110°C for 96 hours
Buy the Buy WURTH ELECTRONIK Flat Flexible Cable Part Number 687730100002 Online
Enhance your electronic assemblies with the WURTH ELECTRONIK Flat Flexible Cable. Designed with durable PET insulators and tin-plated copper contacts, it ensures reliable connectivity in industrial applications. Rated for 0.5A and 60VAC with high insulation resistance, it withstands extensive mating cycles for long-term use. The cable’s flexible design allows easy installation in compact spaces, providing dependable electrical performance. Purchase this versatile cable online today for efficient, high-quality connectivity in your electronic and industrial projects.
Order your WURTH ELECTRONIK Flat Flexible Cable 687730100002 today and enjoy reliable, high-performance electrical connections for your industrial projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 687730100002?
You can click on the BUY or RFQ button to purchase 687730100002 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 687730100002?
You can download the 687730100002 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 687730100002?
WURTH ELEKTRONIK
