WURTH ELEKTRONIK 65503503530508 RF Connector

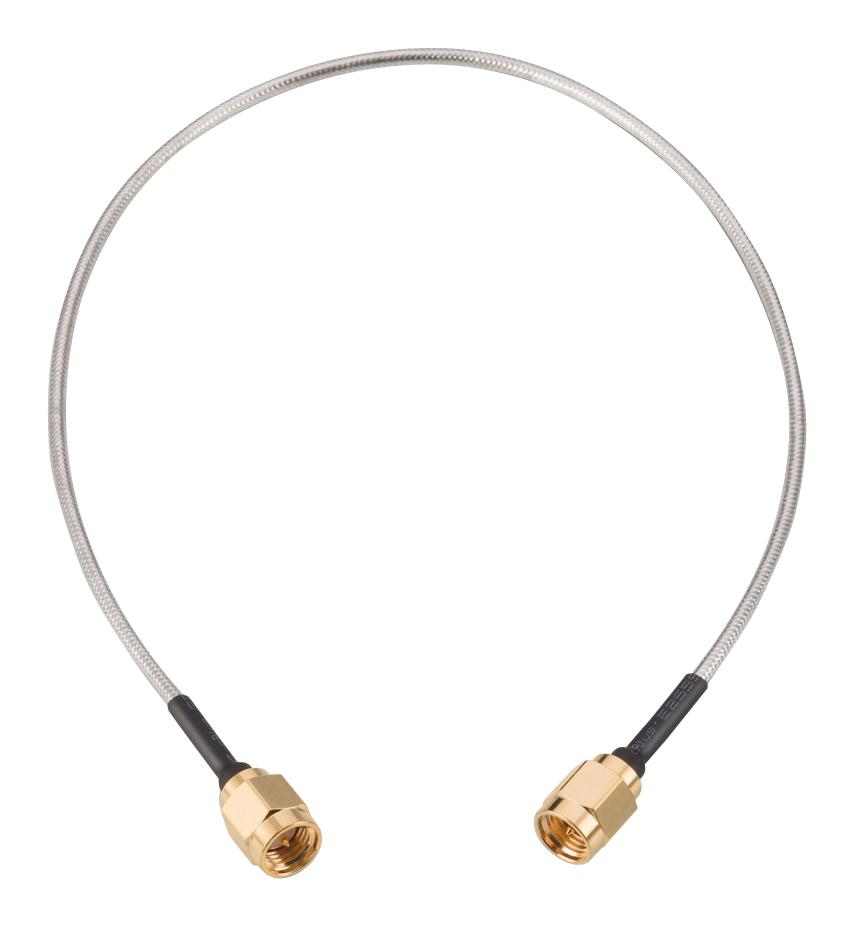

This SMA straight plug connector features a hand-formable cable with a diameter of .085 inch, designed for reliable high-frequency RF signal transmission from DC to 18 GHz. Made with brass body and gold-plated contacts, it offers excellent electrical performance and durability. The connector includes a stainless steel retention ring, silicone gasket, PTFE insulator, and black PE heat shrink tubing for secure and stable connections. Suitable for applications requiring low insertion loss and high shielding effectiveness in RF and microwave systems, ensuring optimal performance in demanding environments up to +165°C temperature range.
WURTH ELEKTRONIK 65503503530508 RF Connector Specifications:
- Connector Type: SMA straight plug
- Cable Diameter: .085 inch
- Body Material: Brass
- Body Plating: Gold, min. 0.076 um over Nickel
- Center Contact Material: Beryllium Copper
- Center Contact Plating: Gold, min. 0.76 um over Nickel
- Insulator Material: PTFE
- Insulator Color: White
- Gasket Material: Silicone
- Gasket Color: Red
- Heat Shrink Tube Material: PE
- Heat Shrink Tube Color: Black
- Retention Ring: Stainless Steel, Passivated
- Operating Temperature: -65°C to +165°C
- Impedance: DC to 18 GHz, 50 Ω
- VSWR: Max 1.3
- Insertion Loss: Max 0.14 dB at DC–18 GHz
- Insulation Resistance: 5000 MΩ at 500 V DC
- Withstanding Voltage: Min. 750 V (RMS)
- Mating Cycles: 500
- Min. Bend Radius: 6 mm
- Packaging: Bag, 10 pcs per package
- Compliance: RoHS
Buy the Wirth Elektronik 65503503530508 – Reliable RF SMA Connectors for Industrial Applications
Order the Wirth Elektronik RF connector today for high-frequency applications up to 18 GHz. Designed with durable brass body, gold-plated contacts, and silicone gasket for secure, low-loss connections. Perfect for RF, microwave, and communication equipment requiring stable performance, excellent shielding, and high reliability in demanding environments. This connector supports up to 500 mating cycles and operating temperature from -65°C to +165°C. Buy online now and ensure high-quality, dependable RF connections for your critical projects, backed by trusted manufacturer standards.
Get Wirth Elektronik 65503503530508 today—built for precision and long-lasting durability in RF and microwave systems.
