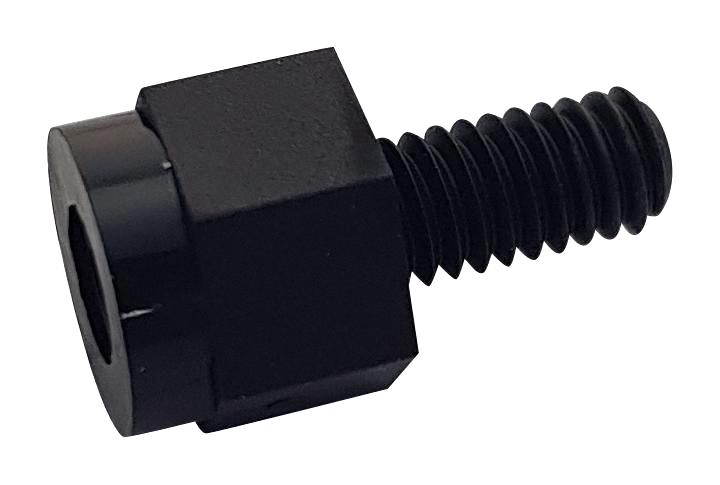

WURTH ELEKTRONIK 971060155 Plastic Spacer Stud
The WURTH ELEKTRONIK 971060155 plastic spacer stud is a versatile component designed to provide secure spacing between printed circuit board (PCB) elements. Constructed from durable black polyamide, it offers excellent insulation and mechanical strength. Featuring both internal and external M2.5 threads, this spacer facilitates easy and reliable mounting in a wide range of electronic assemblies. Compliant with RoHS and REACH regulations, it is suitable for use in general electronic equipment and various industrial applications. Proper storage and handling are essential to maintain its integrity and ensure optimal performance. Customers requiring use in safety-critical applications must obtain written approval from Würth Elektronik.
WURTH ELEKTRONIK 971060155 Plastic Spacer Stud Specifications:
- Dimensions_A_mm: N/A
- SW_mm: 5
- Lu0_1_mm: N/A
- Tlo_mm: 8
- Ti_mm: M2.5
- To_mm: M2.5
- Tli_mm: 4
- Material: Polyamide
- Color: Black
- Flammability_Rating: UL94 HB
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free_IEC_61249_2_21: Conform
- Halogen_Free_JEDEC_JS709B: Conform
- Operating_Temperature_C: -30 up to +110
- Storage_Conditions_C_RH: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level_MSL: 1
- Packaging: Bag
- Length_L_mm: 6
- Inner_Thread: M2.5
- Outer_Thread: M2.5
- Outer_Thread_Length_Tlo_mm: 8
- Wrench_SW_mm: 5
- Thread_Type: with Metric Thread, internal/external
