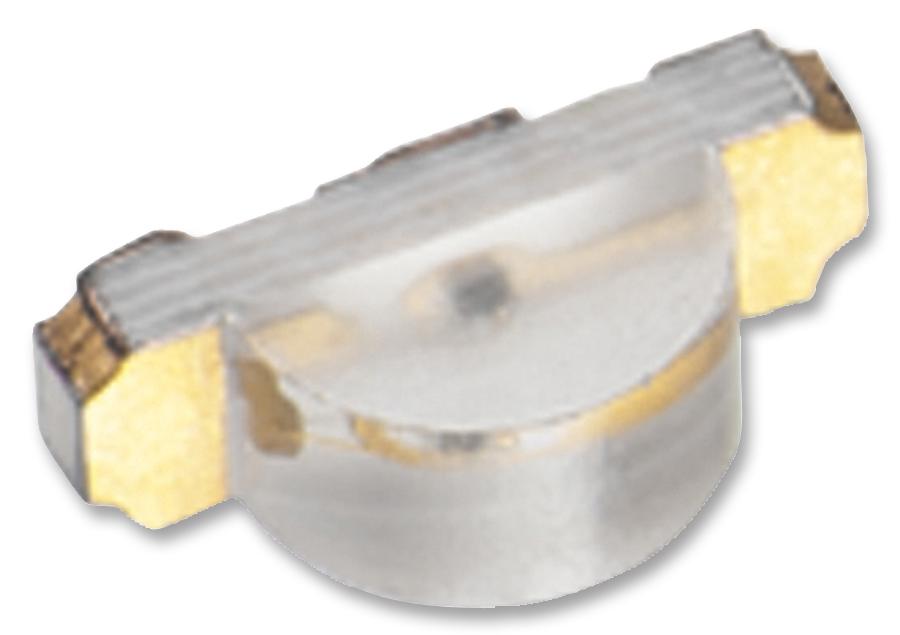

WURTH ELEKTRONIK 155124BS73200 Mono-color Side View LED
The WURTH ELEKTRONIK 155124BS73200 is a miniature, side-view LED designed for SMT assembly. It features a compact form factor and emits blue light with a dominant wavelength of 470nm. This LED is ideal for indicator lights, backlighting, and other applications where a small, efficient light source is needed. It is RoHS compliant and suitable for general electronic equipment, but not intended for critical safety applications without further evaluation.
WURTH ELEKTRONIK 155124BS73200 Mono-color Side View LED Specifications:
- Dimensions: 3.2 ±0.2 mm, 1.0 ±0.2 mm, 0.5 ±0.15 mm, 1.5 ±0.2 mm, 2.0 ±0.2 mm
- Polarity Mark: Cathode: 0.6 typ.
- Reinforcing Pin: 1, 2
- Recommended Land Pattern: 0.6, 0.9, 0.8, 1.0, 1.0, 2.0, 2, 1
- Power Dissipation: 95 mW
- Peak Forward Current: 100 mA (duty/ 10 @ 1 kHz)
- Continuous Forward Current: 25 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body: 400 V
- Chip Technology: InGaN
- Emitting Color: Blue
- Lens Type: Round
- Operating Temperature: -40 up to +85 °C
- Storage Conditions in Original Packaging: < 40 °C ; < 90 % RH
- Storage Conditions for Single Parts: -40 up to +85 °C
- Moisture Sensitivity Level MSL: 3
- Peak Wavelength: 468 nm
- Dominant Wavelength: 470 nm
- Luminous Intensity: 100-150 mcd
- Forward Voltage: 3.4-3.8 V
- Spectral Bandwidth: 25 nm
- Reverse Current: 10 µA
- Viewing Angle: 120°
Buy the 155124BS73200 WURTH ELEKTRONIK Mono-color Side View LED | myMectronic
Purchase the WURTH ELEKTRONIK 155124BS73200 securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 155124BS73200?
You can click on the BUY or RFQ button to purchase 155124BS73200 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 155124BS73200?
You can download the 155124BS73200 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 155124BS73200?
WURTH ELEKTRONIK
