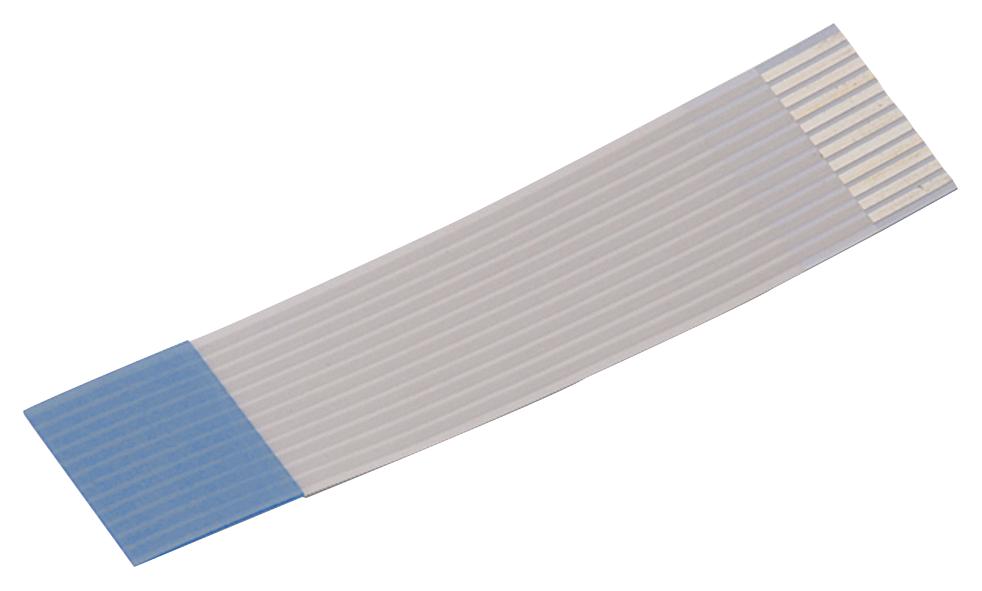

WURTH ELEKTRONIK 686710152001 Flat Flexible Cable
The WR-FFC Flat Flexible Cable is a type 2, 1.00 mm pitch cable designed for electronic equipment applications requiring high flexibility and reliable electrical connections. Made with high-quality materials, it features PET insulators and copper conductors with tin plating, ensuring durability and excellent electrical performance. Operating within a temperature range of -30°C to +105°C, it is resistant to moisture, heat, and flammability, certified under UL standards. Suitable for data transmission and internal wiring in complex electronic assemblies, it guarantees longevity with up to 20 mating cycles for dependable use.
WURTH ELEKTRONIK 686710152001 Flat Flexible Cable Specifications:
- Pitch: 1 mm
- Length: 152 mm
- Width: 11 mm
- Margin: 0.12 mm
- Conductor Width: 0.7 mm
- Conductor Thickness: 0.035 mm
- Support Tape Length 1 & 2: 10 mm each
- Strip Length 1 & 2: 5 mm each
- Support Tape Thickness: 0.225 mm
- Insulation Thickness: 0.043 mm
- Rated Current: 1 A
- Working Voltage: 60 V
- Insulation Resistance: 1000 MΩ minimum at 500 V
- Withstanding Voltage: 500 V no breakdown
- Conductor Resistance: 1.09 Ω max.
- Contact Resistance: 20 mΩ max.
- Operating Temperature: -30°C to +105°C
- Flammability Rating: UL SUB.758
- Durability: 20 mating cycles
- Material: PET insulator, copper conductors with tin plating
- Moisture Resistance: 96 hours at 40°C, 95% RH
- Certification: UL, cULus, RoHS, REACh conformant
- Packaging: Bulk and carton (mm); meet specified packaging standards
Buy the Wurth Elektronik Series WR-FFC Flat Flexible Cable: 686710152001
Secure your electronic connections with the high-quality Wurth Elektronik Flat Flexible Cable. Designed with 1 mm pitch, PET insulation, and copper conductors, this cable ensures reliable data transfer and internal wiring for complex electronic devices. Certified under UL standards and operating from -30°C to +105°C, it offers exceptional durability, moisture resistance, and 20 mating cycles. Perfect for various industry applications, this flexible cable combines performance and long-term stability. Purchase online today to enhance your electronic projects with confidence and efficiency.
Buy Wurth Elektronik WR-FFC Flat Flexible Cable now and experience unmatched reliability and performance in electronic applications with high flexibility and durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686710152001?
You can click on the BUY or RFQ button to purchase 686710152001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686710152001?
You can download the 686710152001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686710152001?
WURTH ELEKTRONIK
