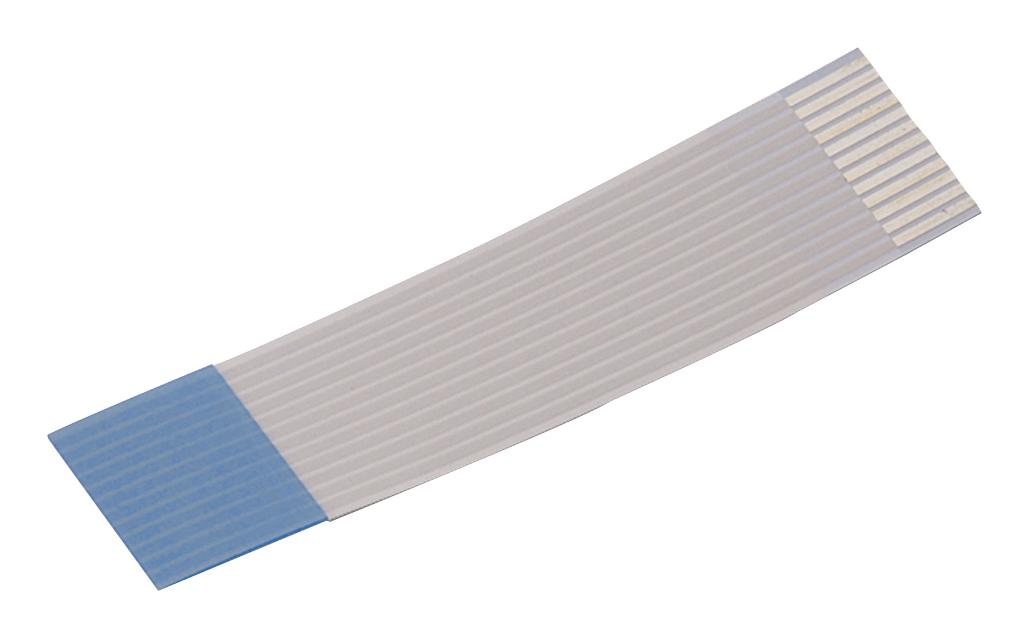

WURTH ELEKTRONIK 687716100002 Flexible Flat Cable
The WR-FFC Flat Flexible Cable is a high-quality, flexible electronic connection designed for efficient data transmission in electronic equipment. With a low profile of 0.50 mm thickness and multiple support tape and strip lengths, this cable ensures durability and reliability in various electronic applications. It features a conductor thickness of 0.05 mm, insulation thickness of 0.043 mm, and supports a rated current of 0.5 A with a maximum working voltage of 60 V. Certified for durability and compliance, this cable is suitable for precise, high-performance electronic assemblies requiring flexibility and stability.
WURTH ELEKTRONIK 687716100002 Flexible Flat Cable Specifications:
- Thickness: 0.50 mm
- Conductor Thickness: 0.05 mm
- Insulation Thickness: 0.043 mm
- Support Tape Length 1: 8 mm
- Support Tape Length 2: 8 mm
- Strip Length 1: 4 mm
- Strip Length 2: 4 mm
- Support Tape Thickness: 0.225 mm
- Rated Current: 0.5 A
- Working Voltage: 60 V
- Insulation Resistance: 500 V (00) 1000 MΩ min
- Contact Resistance: 20 mΩ max
- Tensile Strength: 35 N/mm² min
- Elongation of Insulator: 60% min
- Operating Temperature: -30°C to +105°C
- Certifications: UL, IEC, RoHS accordance
- Material: PET (white insulator, blue tape), Copper contact with tin plating
- Durability: 20 mating cycles
Buy the Buy WURTH ELEKTRONIK Flat Flexible Cable Part Number 687716100002 Online
Purchase the WURTH ELEKTRONIK Flat Flexible Cable to ensure high-quality, flexible connections for your electronic projects. With its thin design of 0.50 mm thickness and support for high durability with 20 mating cycles, this cable provides reliable signal integrity and mechanical stability. Perfect for precise, space-constrained electronic assemblies, it adheres to international safety standards, including UL and RoHS compliance. Ordering online guarantees fast delivery, authentic quality, and assistance in selecting the right cable length and configuration for your application needs.
Get WURTH ELEKTRONIK flat flexible cable today—engineered for reliable data transfer and flexible electronic connections in high-performance devices.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 687716100002?
You can click on the BUY or RFQ button to purchase 687716100002 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 687716100002?
You can download the 687716100002 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 687716100002?
WURTH ELEKTRONIK
