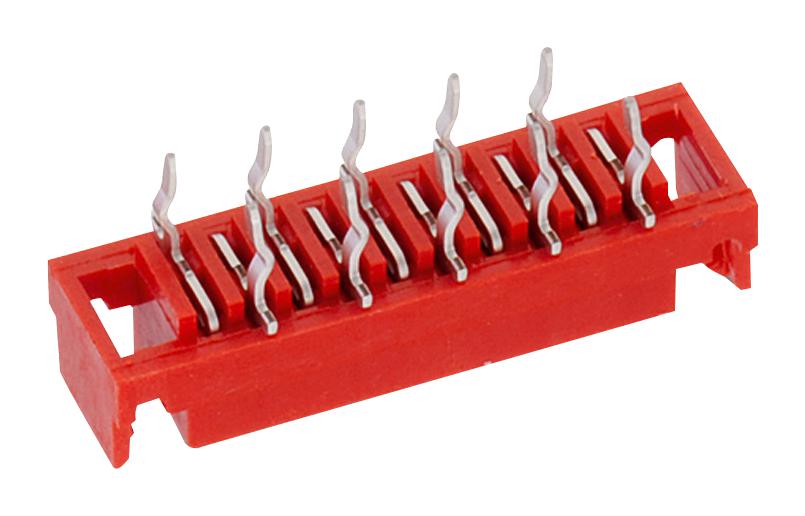

WURTH ELEKTRONIK 690367190672 Female Connector
The WR-MM Female Connector is a high-quality, versatile electronic component designed for reliable connections in various applications such as industrial equipment, automation systems, and control panels. This connector features a durable construction with phosphor bronze contacts, matte tin over nickel plating, and a PBT insulator with UL94 V-0 flammability rating. Suitable for operating temperatures from -40°C to +105°C, it supports rated currents of 1.5 A per pin, working voltages of 250 VAC, and withstands voltages up to 500 V for 1 minute. The connector is RoHS compliant and designed for up to 25 mating cycles, ensuring long-term performance in demanding environments.
WURTH ELEKTRONIK 690367190672 Female Connector Specifications:
- Pitch: 2.54 mm per row
- Material: PBT insulator, phosphor bronze contacts
- Contact Plating: Matte Tin over Nickel
- Flammability Rating: UL94 V-0
- Operating Temperature: -40°C to +105°C
- Rated Current: 1.5 A per pin (PCB)
- Working Voltage: 250 VAC
- Withstanding Voltage: 500 V (AC) for 1 min
- Contact Resistance: 10 mΩ max
- Insulation Resistance: 1000 MΩ min
- Durability: 25 mating cycles
- Gender: Female
- Packaging: Tube and carton options, meet specified packaging standards
- Approval: RoHS compliant, REACh conformant, cULus approved
Buy the WURTH 690367190672 – Reliable Female Connector for Industrial Applications
Purchase the WURTH female connector online now and benefit from fast, secure shipping. This reliable connector supports up to 25 mating cycles, operates within -40°C to +105°C, and is RoHS compliant, making it ideal for industrial, automation, and control system applications. Designed with high-quality phosphor bronze contacts and UL94 V-0 rated insulator, it ensures long-term performance and safety. Get this essential component today to enhance your electronic connections with confidence and efficiency, backed by WURTH’s trusted quality standards.
Order your WURTH Series 690367190672 female connector today and ensure secure, durable connections in your industrial or automation projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 690367190672?
You can click on the BUY or RFQ button to purchase 690367190672 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 690367190672?
You can download the 690367190672 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 690367190672?
WURTH ELEKTRONIK
