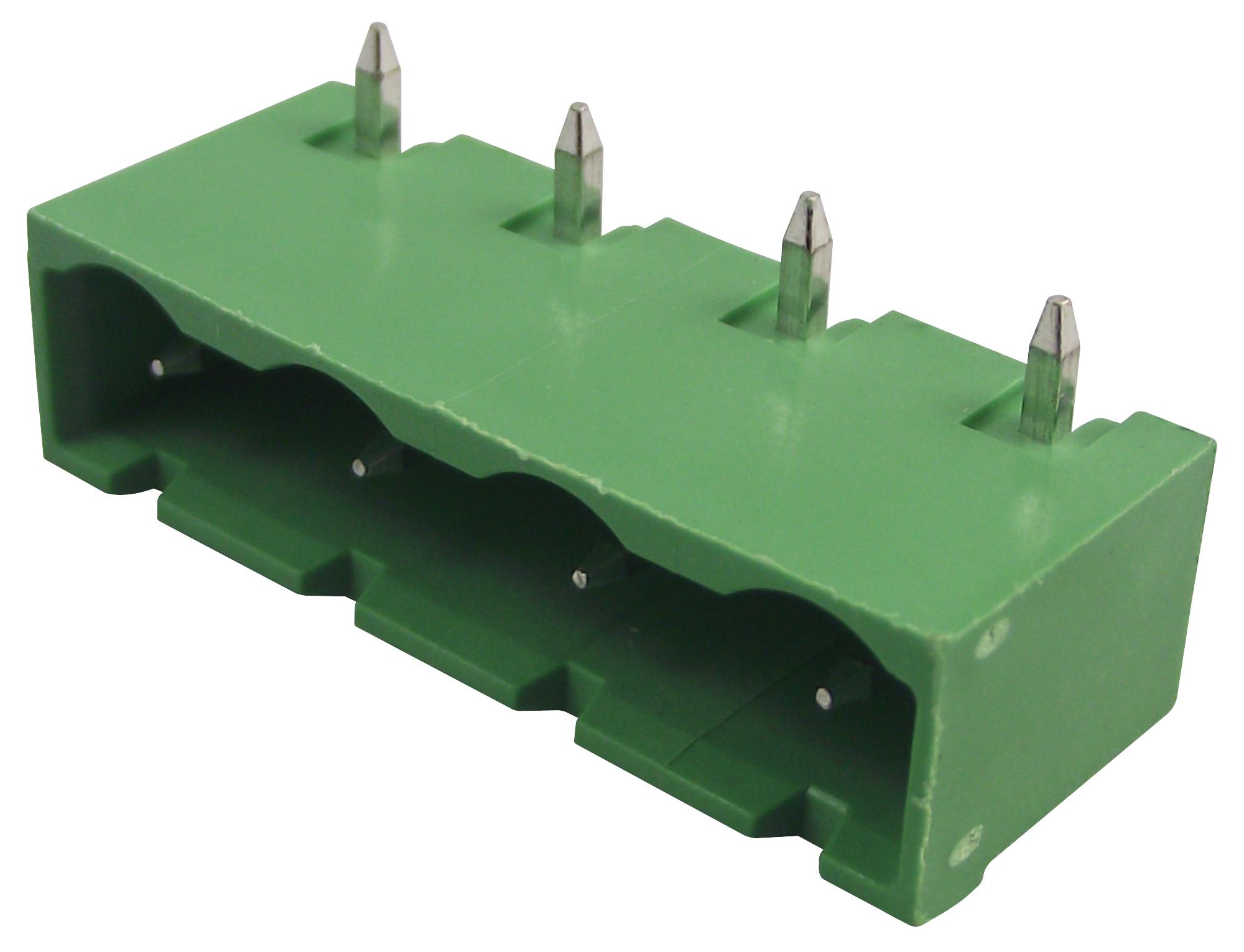

WURTH ELEKTRONIK 691313410004 Cable Header
This product is a 5.08mm horizontal modular cable header designed for reliable electrical connections in electronic assemblies. Constructed with a PBT insulator and brass contact pins, it features a tin-plated surface for durable soldering. The header supports a current rating of 20A and withstands voltages up to 300Vac, with a low contact resistance of 20 mOhm max. It operates efficiently within a temperature range of -40°C to 105°C and complies with lead-free and RoHS standards. The compact design, with a pitch of 5.08mm, makes it suitable for various PCB mounting applications, providing secure and stable connections.
WURTH ELEKTRONIK 691313410004 Cable Header Specifications:
- Insulator Material: PA 66
- Flammability Rating: UL94-VO
- Color: Green
- Metal Housing: Brass (CuZn)
- Surface of Solder Tail Plating: Tin
- Current Rating: 20A
- Working Voltage: 300Vac
- Withstanding Voltage: 1.6kV
- Contact Resistance: 20 mOhm max
- Solid Wire Range: 24 - 16AWG / 0.2 - 1.5mm?
- Stranded Wire Range: 24 - 16AWG / 0.2 - 1.5mm?
- Operating Temperature: -40°C up to 105°C
- Wire Strip Length: 5-6mm
- Screw Size: M2.5
- Pitch: 5.08mm
- Solder Temperature: JEDEC lead free wave soldering
- Packaging: Box
- Approval Certifications: cULus, VDE
Buy the Buy WURTH ELEKTRONIK Cable Header Part Number 691313410004 Online
Enhance your electronic assemblies with our high-quality WURTH ELEKTRONIK Cable Header. Offering precise fit, low contact resistance, and robust construction, this 5.08mm pitch connector ensures dependable electrical connections. Its lead-free, RoHS-compliant design supports high current ratings of up to 20A, making it suitable for a variety of PCB applications. Easy to solder and install, it’s an excellent choice for professional engineers and hobbyists seeking durable and safe connection solutions for their projects.
Order your WURTH ELEKTRONIK 691313410004 5.08mm Horizontal Cable Header today and secure reliable connections for your electronics projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 691313410004?
You can click on the BUY or RFQ button to purchase 691313410004 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 691313410004?
You can download the 691313410004 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 691313410004?
WURTH ELEKTRONIK
