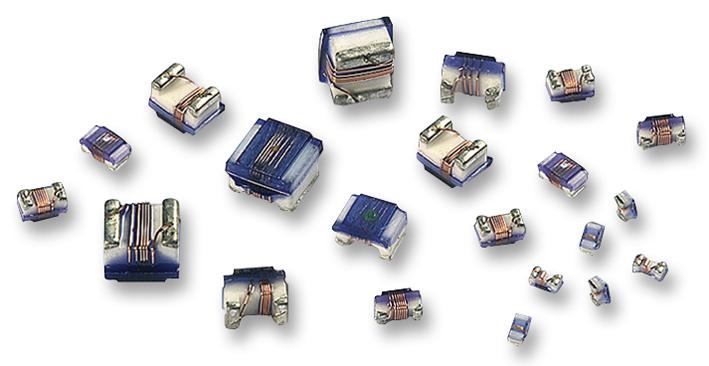

WURTH ELEKTRONIK 744765087A Ceramic Inductor
The WE-KI SMT Wire Wound Ceramic Inductor is designed for high-frequency applications, offering excellent inductance stability and low resistance. It features RoHS and REACH compliance, halogen-free construction, and is suitable for use in sophisticated electronic circuits requiring high reliability. Manufactured to strict standards, this component supports reflow soldering with specified profiles, ensuring secure mounting on surface-mount PCB assemblies. Its compact size and thermal endurance make it ideal for modern electronic devices, including communication equipment and power supply units, delivering optimal electrical performance in demanding environments.
WURTH ELEKTRONIK 744765087A Ceramic Inductor Specifications:
- Inductance: 87 nH
- Q-Factor at 250 MHz: 18 min
- Q-Factor at 900 MHz: 50 typ
- DC Resistance: 0.02 Ω max at 20°C
- Rated Current: 480 mA at 15K
- Self-Resonant Frequency: 4100 MHz min
- Temperature Range: -40°C up to +125°C
- Storage Conditions: <40°C; 75% RH max, 12 months storage recommended
- RoHS, REACH, Halogen Free, AEC-QUALIFIED
- Component dimensions: small chip size suitable for surface mounting
- Packaging: Tape and Reel, with specified cover and carrier tapes
- Soldering Profile: Preheat 150-200°C for 60-120 sec, peak temp 250-260°C, compliant with IPC/JEDEC standards
Buy the Wurth Series SMT Wire Wound Ceramic Inductor: 744765087A
Order the Wurth Ceramic Inductor 744765087A today for high-frequency circuits and power supply applications. This surface-mount component offers excellent electrical stability, RoHS compliance, halogen-free design, and is manufactured to demanding quality standards. Perfect for communication equipment, power modules, and modern electronic devices, it ensures durability, reliability, and optimal performance under thermal and electrical stress. Make your electronic design more efficient—purchase online now to enjoy fast delivery and quality assurance for your project needs.
Get Wurth 744765087A today—built for high-frequency stability and reliable performance in compact electronic designs.
