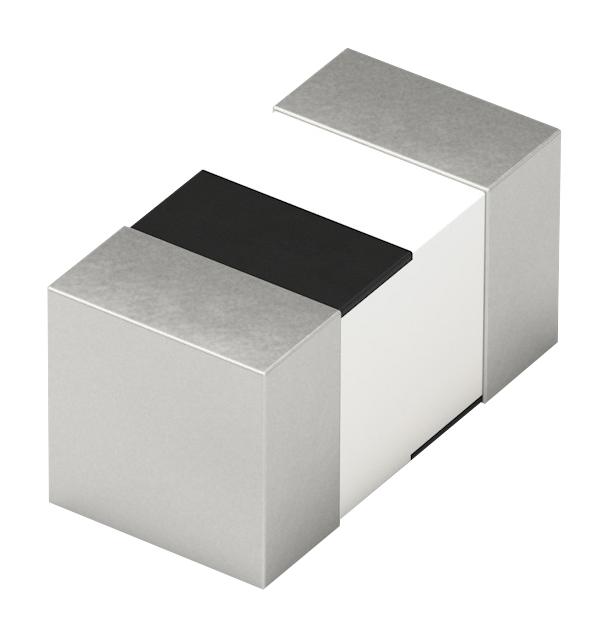

WURTH ELEKTRONIK 7447840027 High-Frequency Ceramic Inductor
The inductor features a 0402 surface-mount package designed for high-frequency applications, with an inductance of 1 nH and a Q-factor of 8 at 100 MHz. It has a DC resistance of max 0.4 ohms at 20°C, rated for a maximum current of 300 mA, and a self-resonant frequency exceeding 8000 MHz. Compliant with RoHS and REACh standards, it operates efficiently within -55°C to +125°C, making it suitable for compact, high-performance electronic circuits requiring reliable inductance and minimal parasitic effects.
WURTH ELEKTRONIK 7447840027 High-Frequency Ceramic Inductor Specifications:
- Inductance: 1 nH at 100 MHz +0.3nH
- Q-Factor: 8 at 100 MHz
- DC Resistance: max 0.4 ohms @ 20°C
- Rated Current: 300 mA
- Self-Resonant Frequency: > 8000 MHz
- Operating Temperature Range: -55°C to +125°C
- Storage Conditions: < 40°C; < 75% RH
- Moisture Sensitivity Level: 1
- RoHS and REACh Compliance
- Package Size: 0402 (1.0 x 0.5 mm)
Buy the Wurth Series High-Frequency Inductor: 7447840027
Order the Wurth high-frequency ceramic inductor 7447840027 online today to ensure your electronic designs are optimized for high-frequency stability, low parasitic effects, and reliable performance. Perfect for compact circuits, this premium component meets international safety and environmental standards, including RoHS and REACh. With straightforward ordering, fast shipping, and expert support, enhance your project efficiency and reduce time-to-market by choosing this dependable inductor for your high-performance applications.
Buy Wurth high-frequency SMT inductor 7447840027 now and experience unmatched reliability and performance for your electronic circuits.
