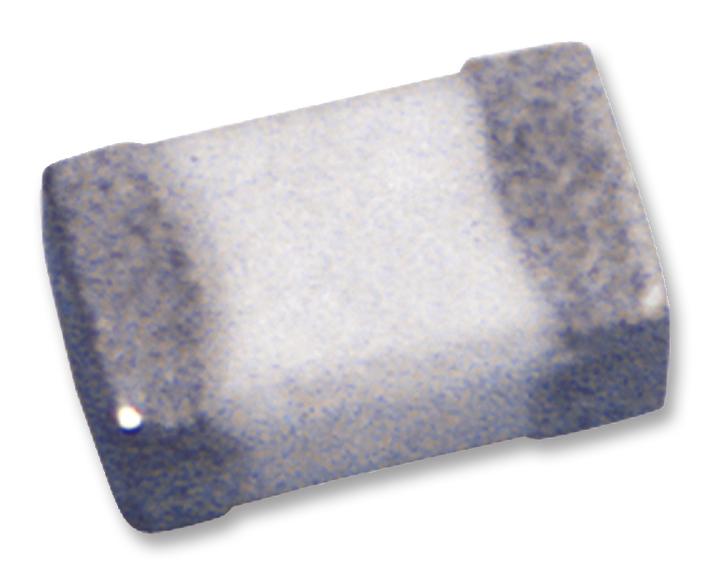

WURTH ELEKTRONIK 744784022A Multilayer Ceramic SMD Inductor
The WE-MK Multilayer Ceramic SMD Inductor by Wurth Elektronik is designed for electronic equipment with high safety and reliability requirements. It features an inductance of 22 nH at 100 MHz, a Q-factor of at least 8, and a DC resistance of max 0.16 ohms at 20°C. Rated for a maximum current of 300 mA, with a self-resonant frequency of 6000 MHz, suitable for high-frequency applications. Operating within -55°C to +125°C, it complies with RoHS and REACH standards, ensuring high quality and durability in demanding environments.
WURTH ELEKTRONIK 744784022A Multilayer Ceramic SMD Inductor Specifications:
- Inductance: 22 nH at 100 MHz with ±0.3 nH tolerance
- Q-factor: minimum 8 at 100 MHz
- DC Resistance: maximum 0.16 Q at 20°C
- Rated Current: 300 mA at 20K
- Self-Resonant Frequency: 6000 MHz
- Operating Temperature Range: -55°C to +125°C
- Ambient Temperature Range: -40°C to +105°C
- Storage Temperature: -20°C to +60°C on tape & reel
- Max Temperature: 125°C during operation
- Compliance: RoHS & REACH
- Package Size: 0402A (Metric 1.0 x 0.5 mm)
- Designed for high-frequency electronic circuits, with strict safety and reliability standards
Buy the Buy Wurth Elektronik Multilayer Ceramic SMD Inductor Part Number 744784022A Online
Purchase the Wurth Elektronik Series744784022A high-performance ceramic SMD inductor online now to secure reliable inductance for your electronic projects. This compact 0402A size component offers an inductance of 22 nH with a 6000 MHz self-resonant frequency, making it ideal for high-frequency applications requiring strict safety and quality standards. Featuring low resistance and high stability across a wide temperature range, it guarantees durability in critical environments. Enjoy fast online ordering, competitive prices, and expert support to enhance your manufacturing or repair processes effectively.
Order your Wurth Elektronik Series744784022A ceramic SMD inductor today and ensure your high-frequency electronics meet the highest safety and reliability standards.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744784022A?
You can click on the BUY or RFQ button to purchase 744784022A from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744784022A?
You can download the 744784022A datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744784022A?
WURTH ELEKTRONIK
