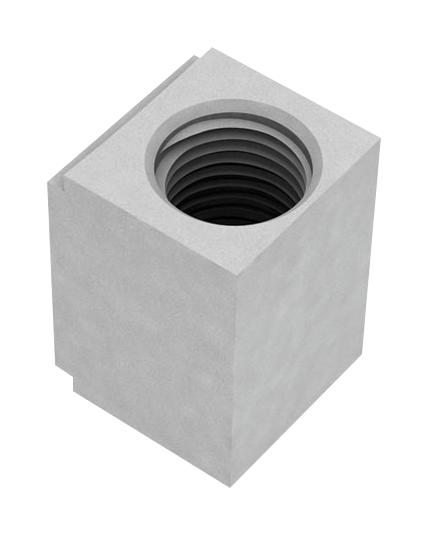

WURTH ELEKTRONIK 7466303R Power Connector
The REDCUBE SMD right angled connector without pins is made from brass with a non-plated surface and tin surface treatment. It supports a rated current of 50 A at 20°C, operating temperature from -55°C to +150°C, and features a tight tightening torque of 0.4 Nm. Designed for SMT applications, it has a recommended land pattern of 16 mm, with packaging in tape and reel for 1600 units. Suitable for high-current power connections, this connector ensures reliable electrical contact and flexible installation in electronic assemblies.
WURTH ELEKTRONIK 7466303R Power Connector Specifications:
- Material: Brass with tin surface
- Rated Current: 50 A at 20°C
- Operating Temperature: -55°C to +150°C
- Tightening Torque: 0.4 Nm
- Surface Finish: Tin
- Suitable for SMT applications
- Land Pattern: 16 mm
- Packaging: Tape and Reel, 1600 units per reel
- Maximum solder cream thickness: 120 μm
- Soldering profile: Preheat Min 150°C, Max 200°C, Duration 60-120 seconds, Peak temperature approximately 260°C
- Max Ramp Rate: 3°C/sec during reflow
- Component height: not specified but designed for surface mounting
- Compliance: Generally adheres to IEC 60286-3:2013 packaging standard
Buy the Buy Wirth Elektronik REDCUBE SMD Right Angled Connector Without Pins WP-SMRA Part Number 7466303R Online
Discover the reliable Wirth Elektronik REDCUBE SMD right angled connector without pins, designed for high-current power applications. Featuring a brass body with tin surface, it supports 50 A current at 20°C, operates across -55°C to +150°C, and ensures secure connections in surface-mount assemblies. Packaged in tape and reel for easy automation, this connector simplifies your assembly process while maintaining excellent electrical contact. Order online now to enhance your electronic designs with trusted, high-quality power components that deliver consistent performance and durability.
Order your Wirth Elektronik Series WP-SMRA 7466303R right angled SMT connector today and ensure dependable, high-current electrical connections for your electronic projects.
