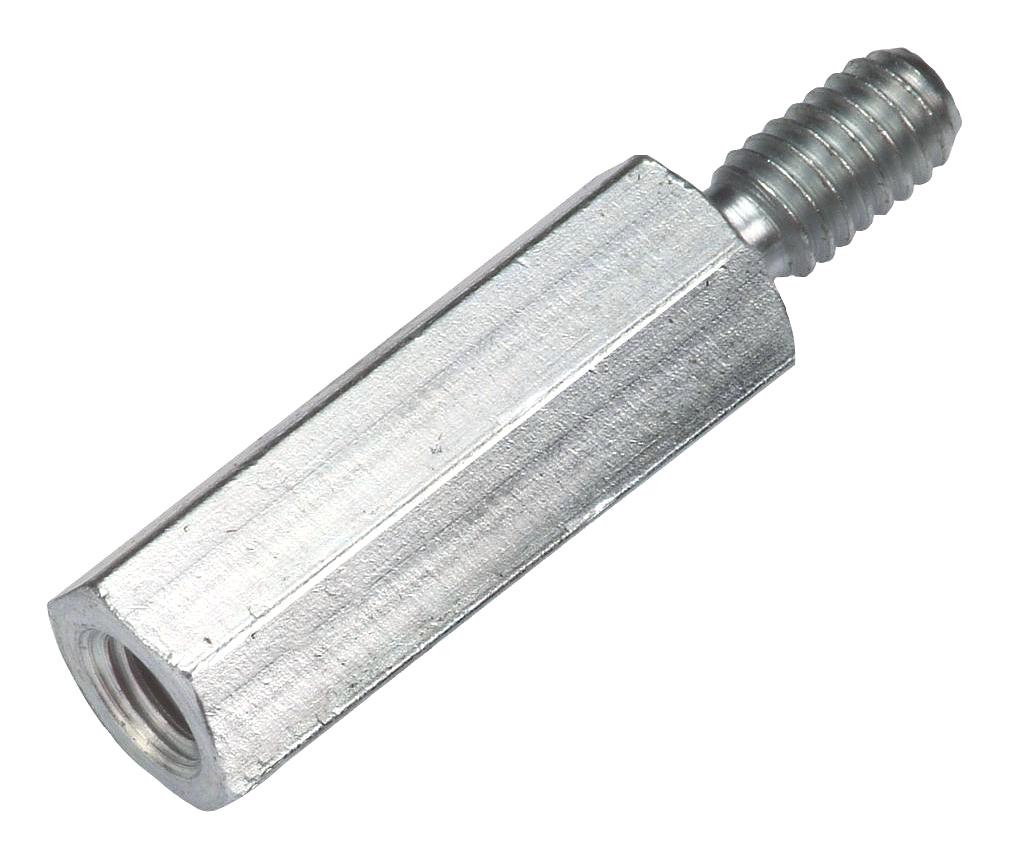

WURTH ELEKTRONIK 971050321 Steel Spacer Stud
The Würth Elektronik WA-SSTIE series steel spacer stud (part number 971050321) is a precision-engineered fastener designed for use in a wide range of electronic applications. This spacer provides secure mounting and spacing of components on printed circuit boards. Constructed from steel with a gloss zinc surface finish, it offers excellent corrosion resistance and durability. The stud features M3 internal and external threads, facilitating easy integration into existing designs. It is RoHS and REACH compliant, meeting stringent environmental standards. Proper storage and handling are essential to maintain product integrity; avoid direct sunlight and adhere to specified storage temperatures and humidity levels. Customers requiring use in safety-critical applications must obtain written approval from Würth Elektronik.
WURTH ELEKTRONIK 971050321 Steel Spacer Stud Specifications:
- Dimensions_A: N/A
- Material: Steel
- Surface: Gloss zinc
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21]
- Operating Temperature: -55 up to +150 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Length_L: 5 mm
- Inner Thread: M3
- Outer Thread: M3
- Inner Thread Length_Tli: 3 mm
- Outer Thread Length_Tlo: 6 mm
- Wrench_SW: 5.5
- Description: WA-SSTIE Steel Spacer Stud
- Order Code: 971050321
- General Tolerance: DIN ISO 2768-1m
- Halogen Free_JEDEC: Conform [JEDEC JS709B]
