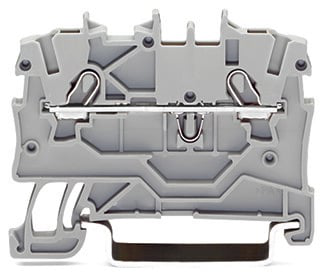

WAGO 20001205 2-conductor Through Terminal Block
The WAGO 2000-1205 is a robust 2-conductor through terminal block ideal for industrial applications requiring reliable and safe connections. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, it utilizes the innovative Push-in CAGE CLAMP® technology for quick and secure conductor termination. This terminal block is suitable for Ex e II applications, ensuring safe operation in potentially explosive environments. It supports a wide range of conductor sizes and materials, making it versatile for various wiring needs. Its compact design and robust construction contribute to efficient and dependable electrical systems.
WAGO 20001205 2-conductor Through Terminal Block Specifications:
- Rated voltage (III/3): 800 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 13.5 A
- Rated current 2: 17.5 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 15 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 10 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 13 A
- Rated current (Ex e II) with jumper: 12 A
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross-section: 1 mm²
- Solid conductor: 0,14 … 1,5 mm² / 24 … 16 AWG
- Solid conductor; push-in termination: 0,5 … 1,5 mm² / 20 … 16 AWG
- Fine-stranded conductor: 0,14 … 1,5 mm² / 24 … 16 AWG
- Fine-stranded conductor; with insulated ferrule: 0,5 … 0,75 mm² / 20 … 18 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 0,5 … 0,75 mm² / 20 … 18 AWG
- Strip length: 9 … 11 mm / 0.35 … 0.43 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Width: 3,5 mm / 0.138 inch
- Height from upper-edge of DIN-rail: 32,9 mm / 1.295 inch
- Depth: 48,5 mm / 1.909 inch
- Material: Polyamide 66 (PA 66)
