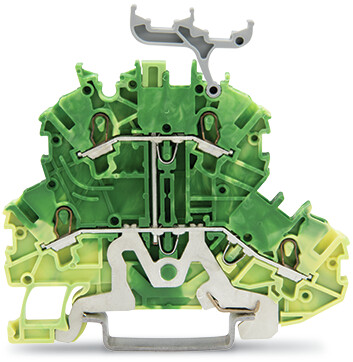

WAGO 20002237 4-conductor Ground Terminal Block
The WAGO 2000-2237 is a robust and reliable ground terminal block suitable for a wide range of industrial applications. Its double-deck design allows for increased density and efficient space utilization on DIN rails. The integrated PE connection ensures proper grounding, enhancing safety and minimizing electrical noise. The Push-in CAGE CLAMP® connection simplifies wiring and reduces installation time, making it ideal for both new installations and retrofits.
Authorized Distributors
Source:RS Americas, Inc
Part No:20002237
Stock:0
Inv Date:06-04-2026
Price: Unit price: $3982.63
Buy/RFQ:
Source:Master Electronics
Part No:2000-2237
Stock:40
Inv Date:06-04-2026
Price: Unit price: $15.31
Buy/RFQ:
Source:Onlinecomponents.com
Part No:2000-2237
Stock:40
Inv Date:06-04-2026
Price: Unit price: $15.31
Buy/RFQ:
WAGO 20002237 4-conductor Ground Terminal Block Specifications:
- Color: green-yellow
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 1 mm²
- Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
- Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
- Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
- Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
- Strip length: 9 … 11 mm / 0.35 … 0.43 inch
- Total number of connection points: 4
- Total number of potentials: 2
- Number of levels: 2
- Wiring type: Front-entry wiring
- Width: 3.5 mm / 0.138 inch
- Height: 69.7 mm / 2.744 inch
- Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch
- Potential marking: PE
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 0.156 MJ
- Weight: 10.1 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4055143251440
- Customs tariff number: 85369010000
Buy the 2000-2237 WAGO 4-conductor Ground Terminal Block | myMectronic
Purchase the WAGO 2000-2237 securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 20002237?
You can click on the BUY or RFQ button to purchase 20002237 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20002237?
You can download the 20002237 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20002237?
WAGO
