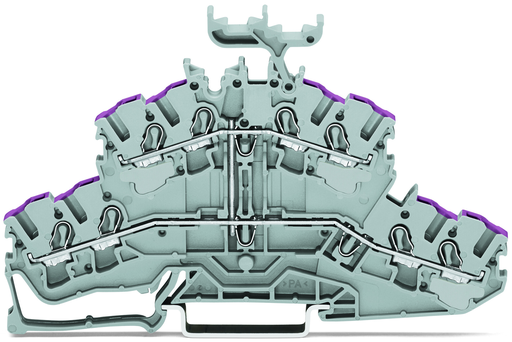

WAGO 20022438 4-conductor double deck terminal block
The WAGO 2002-2438 is a robust and reliable terminal block designed for use in industrial applications. It features a double deck design, allowing for increased connection density. The Push-in CAGE CLAMP® connection technology ensures secure and easy termination of conductors. Suitable for DIN-rail 35 x 15 and 35 x 7.5, this terminal block is a versatile solution for power distribution and signal routing in control cabinets and automation systems. It is rated for 800V and 24A, ensuring safe and efficient operation.
WAGO 20022438 4-conductor double deck terminal block Specifications:
- Rated voltage (III/3): 800 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 24 A
- Rated current 2: 28 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 20 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 20 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 20 A
- Rated voltage CSA (Use Group D): 600 V
- Rated current CSA (Use Group D): 20 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 21 A
- Rated current (Ex e II) with jumper: 17 A
- Note on rated current: 16 A staggered jumper
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Total number of connection points: 8
- Total number of potentials: 1
- Number of levels: 2
- Wiring type: Front-entry wiring
- Width: 5.2 mm / 0.205 inch
- Height: 105.1 mm / 4.138 inch
- Depth from upper edge of DIN-rail: 62.7 mm / 2.469 inch
- Potential marking: L
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Insulation material: Polyamide (PA66)
- Fire load: 0.308 MJ
- Weight: 16.6 g
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4050821144779
