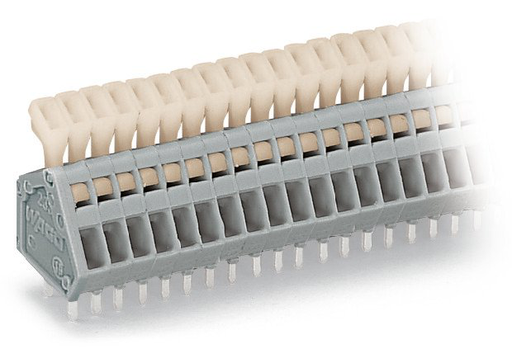

WAGO 233204 4-pole PCB Terminal Block
The WAGO 233-204 is a compact PCB terminal block designed for efficient and reliable electrical connections. Utilizing the innovative CAGE CLAMP® connection technology, it provides a secure and easy termination process, reducing installation time and ensuring long-term performance. This 4-pole terminal block is ideal for applications in industrial control systems, automation equipment, and power distribution panels where space is limited and robust connections are essential. Its double solder pins enhance mechanical stability, while the push-button actuation simplifies wiring and maintenance. The terminal block is compatible with a range of conductor sizes and offers flexibility in color combinations to meet specific project requirements.
WAGO 233204 4-pole PCB Terminal Block Specifications:
- Rated voltage (III / 3): 63 V
- Rated impulse voltage (III / 3): 2.5 kV
- Rated voltage (III / 2): 160 V
- Rated impulse voltage (III / 2): 2.5 kV
- Rated voltage (II / 2): 320 V
- Rated impulse voltage (II / 2): 2.5 kV
- Rated current: 6 A
- Rated voltage UL (Use Group B): 150 V
- Rated current UL (Use Group B): 4 A
- Rated voltage CSA (Use Group B): 150 V
- Rated current CSA (Use Group B): 4 A
- Connection technology: CAGE CLAMP®
- Actuation type: Push-button
- Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-stranded conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 mm²
- Strip length: 5 … 6 mm / 0.2 … 0.24 inch
- Conductor entry angle to the PCB: 30 °
- No. of poles: 4
- Total number of connection points: 4
- Total number of potentials: 4
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 2.5 mm / 0.098 inch
- Width: 12.3 mm / 0.484 inch
- Height: 19.5 mm / 0.768 inch
- Height from the surface: 15.5 mm / 0.61 inch
- Depth: 13.9 mm / 0.547 inch
- Solder pin length: 4 mm
- Solder pin dimensions: 0.5 x 0.75 mm
- Drilled hole diameter (tolerance): 1.1 mm (- … +0.1)
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.028 MJ
- Weight: 1.7 g
- Limit temperature range: -60 … +105 °C
