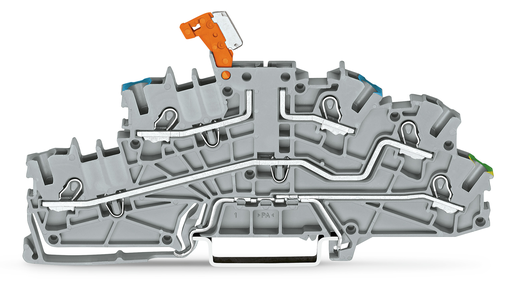

WAGO 20036641 Multilevel Installation Terminal Block
The WAGO 2003-6641 multilevel installation terminal block provides a secure and efficient solution for power distribution in industrial environments. Its design incorporates a pivoting knife disconnect, enhancing safety during maintenance and troubleshooting. The Push-in CAGE CLAMP® connection technology simplifies wiring and ensures reliable connections. This terminal block is ideal for applications requiring multiple connection points and robust performance, such as control panels, machinery, and automation systems. It supports a wide range of conductor sizes and offers clear potential marking for easy identification and organization.
WAGO 20036641 Multilevel Installation Terminal Block Specifications:
- Ratings per IEC/EN 60664-1 Rated voltage (III / 3): 250 V
- Ratings per IEC/EN 60664-1 Rated impulse voltage (III / 3): 4 kV
- Ratings per IEC/EN 60664-1 Rated current: 20 A
- Ratings per IEC/EN 60664-1 Rated voltage (III / 3) 2: 400 V
- Ratings per IEC/EN 60664-1 Rated impulse voltage (III / 3) 2: 6 kV
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 20 A
- Rated voltage UL (Use Group C): 300 V
- Rated current UL (Use Group C): 20 A
- Rated voltage CSA (Use Group C): 300 V
- Rated current CSA (Use Group C): 20 A
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor, push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Total number of connection points: 5
- Total number of potentials: 3
- Number of levels: 3
- Type of wiring: Front-entry wiring
- Width: 5.2 mm / 0.205 inch
- Height from upper-edge of DIN-35 rail: 54.7 mm / 2.154 inch
- Depth: 110 mm / 4.331 inch
- Plug width: 5.2 mm / 0.205 inch
- Type of mounting: DIN-35 rail
- Potential marking: NTi/L/PE
- Marking level: Center/side marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.316 MJ
- Weight: 20.449 g
- Product Group: 22 (TOPJOB S)
- Country of origin: CN
- GTIN: 4050821322030
- Customs Tariff No.: 85365080990
