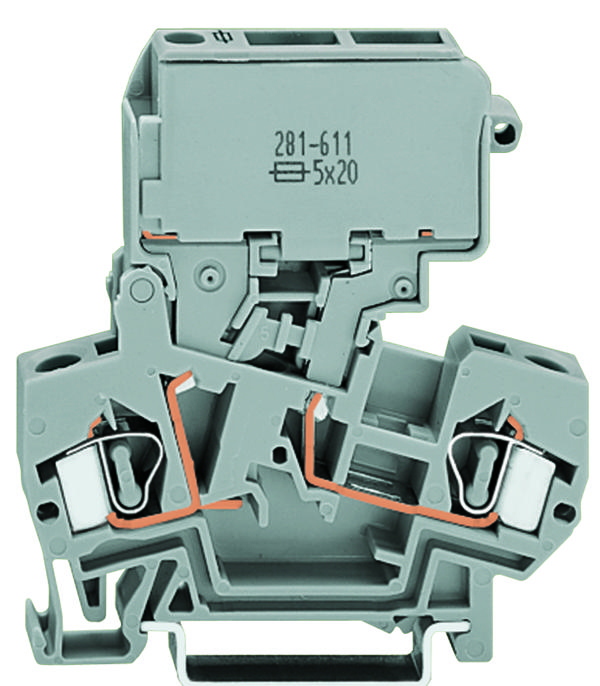

WAGO 281611281418 2-conductor fuse terminal block
The WAGO 281-611/281-418 is a versatile 2-conductor fuse terminal block suitable for a variety of industrial applications. It's designed to accept 5 x 20 mm miniature metric fuses and provides visual blown fuse indication via a neon lamp. The block is mounted on DIN rails (35 x 15 and 35 x 7.5) and utilizes WAGO's CAGE CLAMP® spring pressure connection technology, ensuring reliable termination of conductors. For aluminum conductors, the use of WAGO “Alu-Plus” Contact Paste is recommended to prevent oxidation and corrosion, adapting the nominal currents accordingly.
WAGO 281611281418 2-conductor fuse terminal block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 10 A
- Operation status indicator: 120 V
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 9 … 10 mm / 0.35 … 0.39 inch
- Total number of connection points: 2
- Total number of potentials: 2
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 8 mm / 0.315 inch
- Height from upper-edge of DIN-35 rail: 60 mm / 2.362 inch
- Depth: 60 mm / 2.362 inch
- Design: angled
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.333 MJ
- Weight: 17.5 g
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4045454871444
- Customs Tariff No.: 85369095990
- Leakage current in case of blown fuse: < 0.4mA
